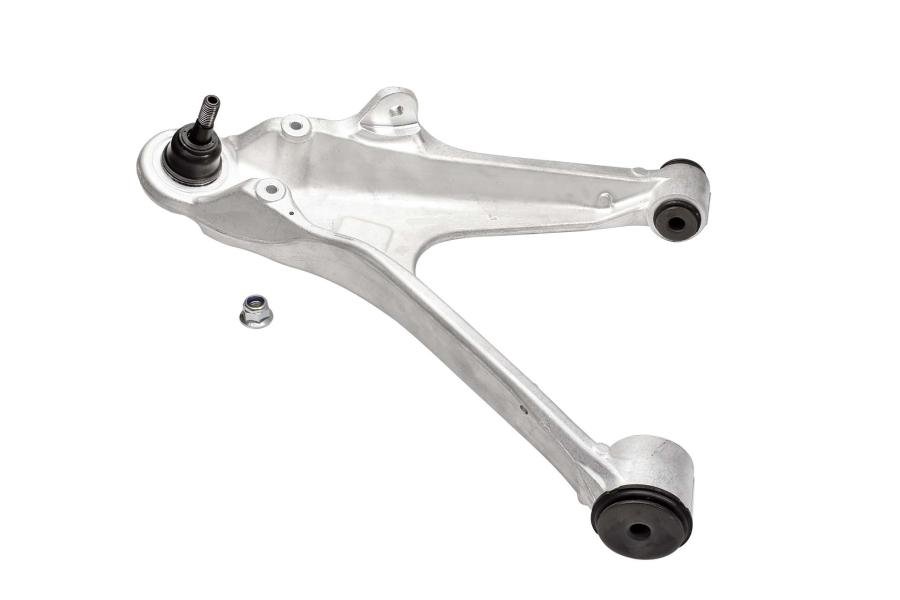

Front lower left control arm with integrated ball joint designed for select 1997–2019 Cadillac and Chevrolet vehicles. This component secures the wheel hub assembly to the chassis, maintains proper suspension geometry, and absorbs road forces to ensure stable steering and ride comfort. Built for durability and reliable alignment retention, the control arm arrives ready to install with a pressed-in ball joint and corrosion-resistant finish to withstand daily driving and restoration projects.
Features:
- Fits front lower left (driver side) suspension for select 1997–2019 Cadillac and Chevrolet applications
- Integrated pressed-in ball joint for straightforward replacement and correct steering geometry
- Heavy-duty steel construction and corrosion-resistant coating for long service life
- Restores factory suspension alignment and improves handling, reducing tire wear
- Direct-fit design for a hassle-free swap; ideal for maintenance, repair, or restoration
Installation / Application:
- Difficulty: 3/5
- Estimated time: 60-120 minutes
Instructions:
- Park on a level surface, engage parking brake, and place wheel chocks behind rear wheels.
- Loosen lug nuts on the front wheel, raise the vehicle with a floor jack, and support securely on jack stands.
- Remove the front wheel to access the control arm and suspension components.
- Apply penetrating oil to control arm fasteners and the ball joint nut; allow time to soak if needed.
- Disconnect sway bar end link (if attached) and any brackets or sensors on the control arm.
- Remove the nut securing the ball joint to the steering knuckle, then separate the ball joint using a ball joint separator or pickle fork.
- Unbolt the control arm bushings from the subframe or chassis mounting points and remove the old control arm.
- Compare the new control arm to the old unit to confirm correct orientation and hardware needs.
- Position the new control arm and loosely install mounting bolts to hold it in place.
- Reconnect the ball joint to the steering knuckle and torque the nut to the vehicle manufacturer's specification.
- Tighten the control arm mounting bolts to the specified torque values, then reattach any removed brackets or sway bar links.
- Reinstall the wheel, lower the vehicle, and torque the lug nuts to specification.
- Have a professional alignment performed after installation to ensure proper steering and tire wear.
About Redline Select
Redline Restomotive® has established itself as a premier brand in the world of classic car restoration, providing enthusiasts with high-quality parts that meet the exacting standards of original manufacturer specifications. Dedicated to the preservation of American automotive history, Redline Restomotive® combines advanced manufacturing techniques with an in-depth understanding of vintage vehicles. The result is a range of products that seamlessly blend into the design and function of classic cars, giving restorers and collectors the assurance that each part reflects the era’s style, quality, and performance.
Redline Select® is our premium line of steering and suspension products for all vehicle makes and models including both North American and Import vehicles. We have partnered with an ISO 9001/QS9000/TS16949 certified manufacturing facility with more than 40 years of experience in producing components that perform to the standards our customers expect. Our steering and suspension parts are backed by multiple quality control checks along the way—during production, prior to shipping from the factory, and at arrival. With our ISO 9001:2015 certification, we observe the world’s highest standards for quality management.
Vehicle Fitment:
The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
| Make |
Model |
Years |
| Cadillac |
XLR |
2004 - 2009 |
| Chevrolet |
Corvette |
1997 - 2019 |
