MSD GM Late Model HEI V8 Ext Coil Distributor 8366

MSD GM Late Model HEI V8 Ext Coil Distributor 8366
MSD GM Late Model HEI V8 Ext Coil Distributor 8366
$481.99 ea
NEWARRIVING SOONEstimated Ship Date 05/23/2025 (If Ordered Today)
Model: 4953312
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY
STORE PICKUP
[More Info]

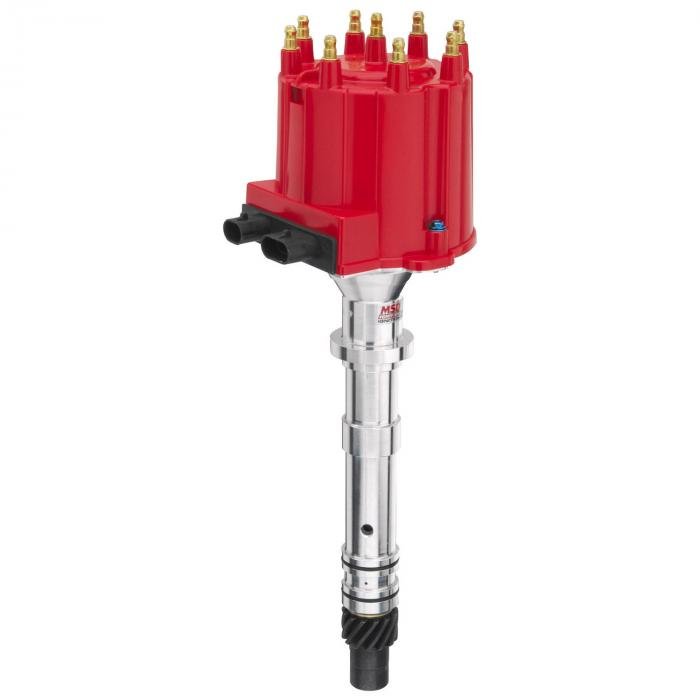

GM late-model performance enthusiasts will be happy to see this Pro-Billet Distributor. The distributor, PN 8366, is a drop-in replacement for GM V8s using the small cap distributor with a dual connector coil found in cars from 1987-1993 and trucks from 1987-1995. The entire housing is CNC-machined to exact tolerances for incredible strength (not to mention cool looks). For improved lubrication there is an extra oil tract machined into the bottom of the housing that delivers oil directly to the cam and distributor gears. Inside, a polished steel shaft receives guidance from a sealed ball bearing and an extra-long sintered bushing adds stability. This 0.500" shaft also receives a QPQ coating for increased friction reduction and corrosion resistance. A factory-style ignition module is supplied with the distributor so your factory wiring will plug directly in. Triggering this module is the responsibility of a high output magnetic pick-up. Topping it all off is a heavy-duty rotor and a red MSD cap with brass terminals to ensure full spark delivery. For late model engine swaps or bolt-on strength, this distributor is the answer.
Features:
  • Drop-in billet replacement for GM distributors with the small cap and external coil
  • Factory style ignition module accepts factory wiring
  • CNC machined billet aluminum housing and billet aluminum base
  • Magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
  • Oversized steel shaft is QPQ coated and guided by a sealed ball bearing and an extra long sintered bushing
  • Special oil tract improves lubrication to the distributor and cam gear
  • O-ring seals can be added to modified blocks to improve oil pressure control
  • Supplied with late model distributor cap and rotor
  • Legal to install in all 50 states
  • Marine UL Certified
About MSD Ignition

Racers never stop experimenting as they search for every way to wring out more power or handling performance to to gain an edge over the competition. The team at MSD is no different as we strive to deliver the products you  need to meet your performance goals. We continue to innovate and invent components and technology that deliver  performance and reliability with products that are easy to use and install.

Over the course of 40-plus years, MSD Performance has been driving the development of innovative components  that helped shape the way our cars race and perform. From super speedways to road courses, land speed racing to  top fuel dragsters, and of course your traditional hot rod, MSD has provided the components to fire nearly anything in  motorsports.

MSD was the first company to develop and offer the multiple sparking, capacitive discharge ignition for engines. The line of MSD 6-Series Ignitions are the most popular aftermarket ignitions in the world due to our race-proven performance on the track and our reliability on the street!

Early on, MSD focused squarely on ignition systems with revolutionary products like the multiple sparking CD ignition, timing and rev controls, billet aluminum distributors and the Pro-Mag, an incredible breakthrough in power  and endurance.

Today MSD is developing electronics for your entire powertrain. The Atomic EFI systems for the LS engine platform and throttle body are now complemented with a transmission controller. Our DynaForce Starters and Alternators  ensure that your engine cranks over to fire up and the Alternators keep it charged. MSD is poised to deliver components that work and communicate together to provide performance and value.

Downloads:

Download Name File Size
2357_add.pdf57.24KB
8366.pdf89.13KB
frm31034_thank_you_0821.pdf23.32KB

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Submodel Years Engine Fitment Notes
Chevrolet Corvette Base 1977 5.7L / 350 / V8 Pro-Billet Distributor; Late Models; EFI; Iron Gear; Red;Intended For Race Use Only;
Chevrolet Corvette Base 1978 5.7L / 350 / V8 Pro-Billet Distributor; Late Models; EFI; Iron Gear; Red;Intended For Race Use Only;
Chevrolet Corvette Base 1979 5.7L / 350 / V8 Pro-Billet Distributor; Late Models; EFI; Iron Gear; Red;Intended For Race Use Only;
Chevrolet Corvette Base 1980 5.0L / 305 / V8
5.7L / 350 / V8
Pro-Billet Distributor; Late Models; EFI; Iron Gear; Red;Intended For Race Use Only;
Chevrolet Corvette Base 1981 5.7L / 350 / V8 Pro-Billet Distributor; Late Models; EFI; Iron Gear; Red;Intended For Race Use Only;
Chevrolet Corvette Base 1982 5.7L / 350 / V8 Pro-Billet Distributor; Late Models; EFI; Iron Gear; Red;Intended For Race Use Only;
Chevrolet Corvette Base 1984 5.7L / 350 / V8 Pro-Billet Distributor; Late Models; EFI; Iron Gear; Red;Intended For Race Use Only;
Chevrolet Corvette Base 1985 5.7L / 350 / V8 Pro-Billet Distributor; Late Models; EFI; Iron Gear; Red;Intended For Race Use Only;
Chevrolet Corvette Base 1986 5.7L / 350 / V8 Pro-Billet Distributor; Late Models; EFI; Iron Gear; Red;Intended For Race Use Only;
Chevrolet Corvette Base 1987 5.7L / 350 / V8 Pro-Billet Distributor; Late Models; EFI; Iron Gear; Red;Intended For Race Use Only;
Chevrolet Corvette Collector's Edition 1982 5.7L / 350 / V8 Pro-Billet Distributor; Late Models; EFI; Iron Gear; Red;Intended For Race Use Only;
Chevrolet Corvette Indianapolis 500 Pace Car 1978 5.7L / 350 / V8 Pro-Billet Distributor; Late Models; EFI; Iron Gear; Red;Intended For Race Use Only;
Chevrolet Corvette Indianapolis 500 Pace Car 1986 5.7L / 350 / V8 Pro-Billet Distributor; Late Models; EFI; Iron Gear; Red;Intended For Race Use Only;
Chevrolet Corvette Silver Anniversary Edition 1978 5.7L / 350 / V8 Pro-Billet Distributor; Late Models; EFI; Iron Gear; Red;Intended For Race Use Only;
Chevrolet Corvette Stingray 1975 5.7L / 350 / V8 Pro-Billet Distributor; Late Models; EFI; Iron Gear; Red;Intended For Race Use Only;
Chevrolet Corvette Stingray 1976 5.7L / 350 / V8 Pro-Billet Distributor; Late Models; EFI; Iron Gear; Red;Intended For Race Use Only;

Specifications:

Color Red
Distributor Type OE Replacement
Emission Code 2
Part Type Distributor
Product Type Distributor
Proposition 65 www.P65Warnings.ca.gov
Warranty Limited 1 Year Warranty
