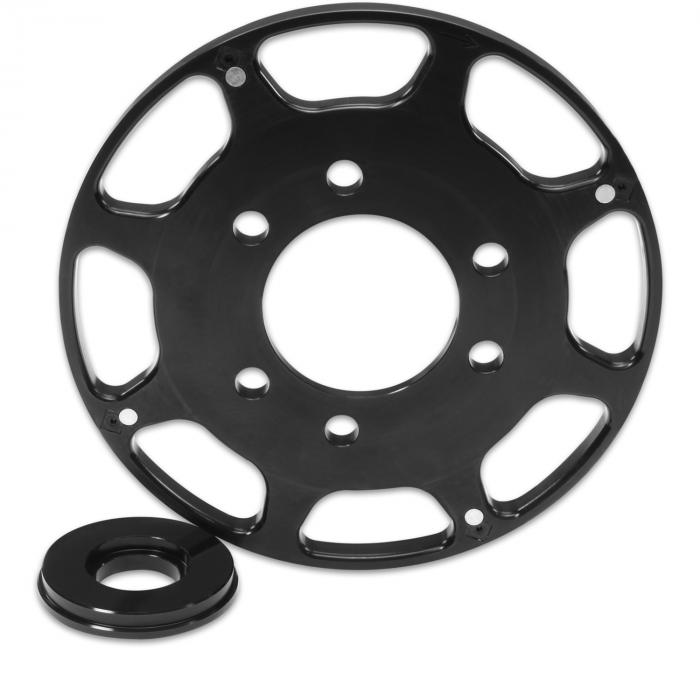

MSD Crank Trigger Wheel, Flying Magnet, SBC, 7 In. 86113

MSD Crank Trigger Wheel, Flying Magnet, SBC, 7 In. 86113
$301.99 ea
NEWARRIVING SOONEstimated Ship Date 05/22/2025 (If Ordered Today)
Model: 4017866
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY
STORE PICKUP
[More Info]
For a long time, racers have known that one of the best things to do to an engine to improve its performance is to stabilize the ignition timing. The MSD Flying Magnet Crank Trigger systems do exactly that by using four magnets embedded in an aluminum wheel. Although similar in appearance to other crank triggers, the MSD Flying Magnet design works on a different principle. Most crank triggers have a wheel, with steel studs sticking out, bolted to the harmonic balancer. As the crankshaft turns, the studs pass by a stationary magnetic pick-up, triggering the ignition. This pick-up can be triggered by other bolts, debris or even vibrations which will cause a loss of power or engine damage. The MSD Flying Magnet Crank Trigger uses four magnets secured in the aluminum trigger wheel that pass by a stationary non-magnetic pick-up to trigger the ignition. This "flying magnet" design produces accurate trigger signals and the non-magnetic pick-up cannot be false triggered, making this one of the best on the market!!
Features:
  • Replacement crank trigger wheel for small block chevy
  • Powerful magnets are embedded in a billet aluminum trigger wheel
  • Absolutely the most accurate way to trigger the ignition
  • Includes Crank Trigger Wheel and Centering RIng
Wheel and Centering Ring Only
Installation Notes:
Wheel and Centering Ring Only
About MSD Ignition

Racers never stop experimenting as they search for every way to wring out more power or handling performance to to gain an edge over the competition. The team at MSD is no different as we strive to deliver the products you  need to meet your performance goals. We continue to innovate and invent components and technology that deliver  performance and reliability with products that are easy to use and install.

Over the course of 40-plus years, MSD Performance has been driving the development of innovative components  that helped shape the way our cars race and perform. From super speedways to road courses, land speed racing to  top fuel dragsters, and of course your traditional hot rod, MSD has provided the components to fire nearly anything in  motorsports.

MSD was the first company to develop and offer the multiple sparking, capacitive discharge ignition for engines. The line of MSD 6-Series Ignitions are the most popular aftermarket ignitions in the world due to our race-proven performance on the track and our reliability on the street!

Early on, MSD focused squarely on ignition systems with revolutionary products like the multiple sparking CD ignition, timing and rev controls, billet aluminum distributors and the Pro-Mag, an incredible breakthrough in power  and endurance.

Today MSD is developing electronics for your entire powertrain. The Atomic EFI systems for the LS engine platform and throttle body are now complemented with a transmission controller. Our DynaForce Starters and Alternators  ensure that your engine cranks over to fire up and the Alternators keep it charged. MSD is poised to deliver components that work and communicate together to provide performance and value.

Videos:

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Submodel Years Engine Fitment Notes
Chevrolet Corvette Base 1955 4.3L / 265 / V8 Crank Trigger Wheel; 7 in.; Fits Small Block Chevy; Flying Magnet; Black;
Chevrolet Corvette Base 1956 4.3L / 265 / V8 Crank Trigger Wheel; 7 in.; Fits Small Block Chevy; Flying Magnet; Black;
Chevrolet Corvette Base 1957 4.6L / 283 / V8 Crank Trigger Wheel; 7 in.; Fits Small Block Chevy; Flying Magnet; Black;
Chevrolet Corvette Base 1958 4.6L / 283 / V8 Crank Trigger Wheel; 7 in.; Fits Small Block Chevy; Flying Magnet; Black;
Chevrolet Corvette Base 1959 4.6L / 283 / V8 Crank Trigger Wheel; 7 in.; Fits Small Block Chevy; Flying Magnet; Black;
Chevrolet Corvette Base 1960 4.6L / 283 / V8 Crank Trigger Wheel; 7 in.; Fits Small Block Chevy; Flying Magnet; Black;
Chevrolet Corvette Base 1961 4.6L / 283 / V8 Crank Trigger Wheel; 7 in.; Fits Small Block Chevy; Flying Magnet; Black;
Chevrolet Corvette Base 1962 5.3L / 327 / V8 Crank Trigger Wheel; 7 in.; Fits Small Block Chevy; Flying Magnet; Black;
Chevrolet Corvette Base 1963 5.3L / 327 / V8 Crank Trigger Wheel; 7 in.; Fits Small Block Chevy; Flying Magnet; Black;
Chevrolet Corvette Base 1964 5.3L / 327 / V8 Crank Trigger Wheel; 7 in.; Fits Small Block Chevy; Flying Magnet; Black;
Chevrolet Corvette Base 1965 5.3L / 327 / V8 Crank Trigger Wheel; 7 in.; Fits Small Block Chevy; Flying Magnet; Black;
Chevrolet Corvette Base 1966 5.3L / 327 / V8 Crank Trigger Wheel; 7 in.; Fits Small Block Chevy; Flying Magnet; Black;
Chevrolet Corvette Base 1967 5.3L / 327 / V8 Crank Trigger Wheel; 7 in.; Fits Small Block Chevy; Flying Magnet; Black;
Chevrolet Corvette Base 1968 5.3L / 327 / V8
5.4L / 327 / V8		 Crank Trigger Wheel; 7 in.; Fits Small Block Chevy; Flying Magnet; Black;
Chevrolet Corvette Base 1969 5.7L / 350 / V8 Crank Trigger Wheel; 7 in.; Fits Small Block Chevy; Flying Magnet; Black;
Chevrolet Corvette Base 1970 5.7L / 350 / V8 Crank Trigger Wheel; 7 in.; Fits Small Block Chevy; Flying Magnet; Black;
Chevrolet Corvette Base 1971 5.7L / 350 / V8 Crank Trigger Wheel; 7 in.; Fits Small Block Chevy; Flying Magnet; Black;
Chevrolet Corvette Base 1972 5.7L / 350 / V8 Crank Trigger Wheel; 7 in.; Fits Small Block Chevy; Flying Magnet; Black;
Chevrolet Corvette Base 1973 5.7L / 350 / V8 Crank Trigger Wheel; 7 in.; Fits Small Block Chevy; Flying Magnet; Black;
Chevrolet Corvette Base 1974 5.7L / 350 / V8 Crank Trigger Wheel; 7 in.; Fits Small Block Chevy; Flying Magnet; Black;
Chevrolet Corvette Base 1977 5.7L / 350 / V8 Crank Trigger Wheel; 7 in.; Fits Small Block Chevy; Flying Magnet; Black;
Chevrolet Corvette Base 1978 5.7L / 350 / V8 Crank Trigger Wheel; 7 in.; Fits Small Block Chevy; Flying Magnet; Black;
Chevrolet Corvette Base 1979 5.7L / 350 / V8 Crank Trigger Wheel; 7 in.; Fits Small Block Chevy; Flying Magnet; Black;
Chevrolet Corvette Base 1980 5.7L / 350 / V8
5.0L / 305 / V8		 Crank Trigger Wheel; 7 in.; Fits Small Block Chevy; Flying Magnet; Black;
Chevrolet Corvette Base 1981 5.7L / 350 / V8 Crank Trigger Wheel; 7 in.; Fits Small Block Chevy; Flying Magnet; Black;
Chevrolet Corvette Base 1982 5.7L / 350 / V8 Crank Trigger Wheel; 7 in.; Fits Small Block Chevy; Flying Magnet; Black;
Chevrolet Corvette Base 1984 5.7L / 350 / V8 Crank Trigger Wheel; 7 in.; Fits Small Block Chevy; Flying Magnet; Black;
Chevrolet Corvette Base 1985 5.7L / 350 / V8 Crank Trigger Wheel; 7 in.; Fits Small Block Chevy; Flying Magnet; Black;
Chevrolet Corvette Base 1986 5.7L / 350 / V8 Crank Trigger Wheel; 7 in.; Fits Small Block Chevy; Flying Magnet; Black;
Chevrolet Corvette Collector's Edition 1982 5.7L / 350 / V8 Crank Trigger Wheel; 7 in.; Fits Small Block Chevy; Flying Magnet; Black;
Chevrolet Corvette Indianapolis 500 Pace Car 1978 5.7L / 350 / V8 Crank Trigger Wheel; 7 in.; Fits Small Block Chevy; Flying Magnet; Black;
Chevrolet Corvette Indianapolis 500 Pace Car 1986 5.7L / 350 / V8 Crank Trigger Wheel; 7 in.; Fits Small Block Chevy; Flying Magnet; Black;
Chevrolet Corvette Silver Anniversary Edition 1978 5.7L / 350 / V8 Crank Trigger Wheel; 7 in.; Fits Small Block Chevy; Flying Magnet; Black;
Chevrolet Corvette Stingray 1975 5.7L / 350 / V8 Crank Trigger Wheel; 7 in.; Fits Small Block Chevy; Flying Magnet; Black;
Chevrolet Corvette Stingray 1976 5.7L / 350 / V8 Crank Trigger Wheel; 7 in.; Fits Small Block Chevy; Flying Magnet; Black;

Specifications:

Color Black
Diameter 7", 7 in.
Emission Code 4
Make Chevy
Part Type Ignition Crank Trigger Wheel
Product Type Crank Trigger Wheel
Proposition 65 www.P65Warnings.ca.gov
Sensor Dimensions 3/4" x 2.25"
Sensor Type Non Magnetic
Trigger Type 4X
Warranty Limited 1 Year Warranty
Wheel Width 3/8"
