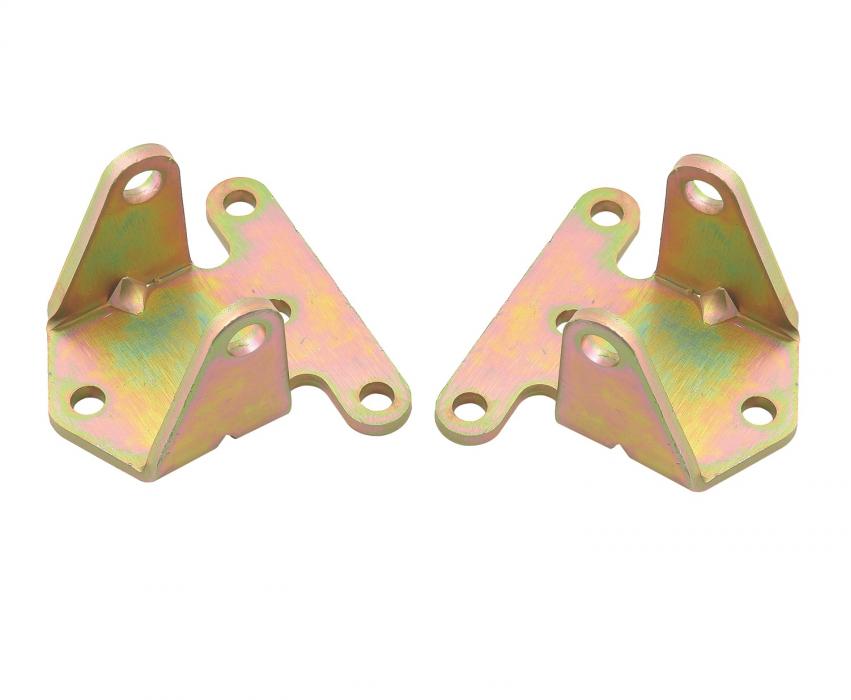

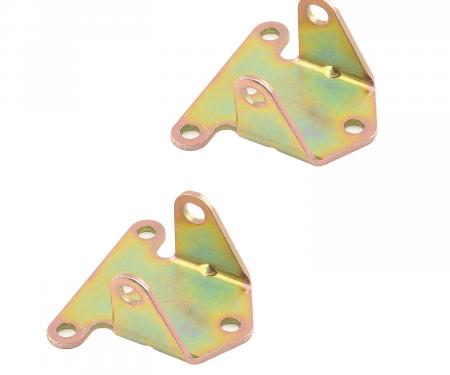

Mr. Gasket Solid Steel Motor Mounts-Long 3672

Mr. Gasket Solid Steel Motor Mounts are recommended only for competition applications. This .180 inch thick, zinc dichromate plated solid mounts do not have the flexing present in rubber or even polyurethane engine mounts. This prevents lateral engine movement or twisting in high horsepower and torque applications. Nor will steel mounts break as easily as stock rubber mounts can. Engine movement in applications like this can cause contact of engine components into places they do not need to be (like headers hitting the frame of the car). Also engine twisting can cause severe drivetrain misalignment affecting shifting or even power transmission to the ground. However, without the insulative effect of rubber, vibration will be substantial and thus solid mounts are not recommended for the street.

There are two versions of this part. A short style and a long style. They are available for 1958-1972 GM applications like Full Size Chevy, Camaro, Chevelle, Chevy II, Nova and Monte Carlo. Which you need can vary based on engine, year, and chassis. You can check to see which you have by measuring the distance from the base of the mount to the center of the through bolt hole. The long style is approximately 2-1/8 inch, the short 1-11/16 inch.
