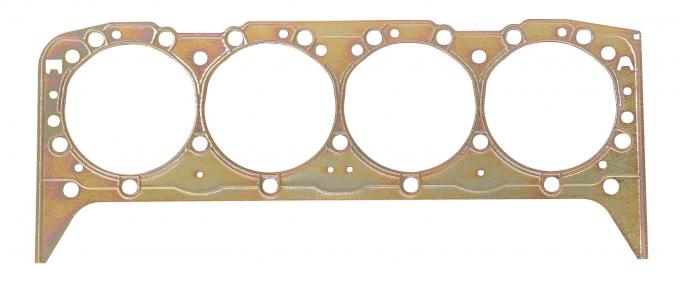

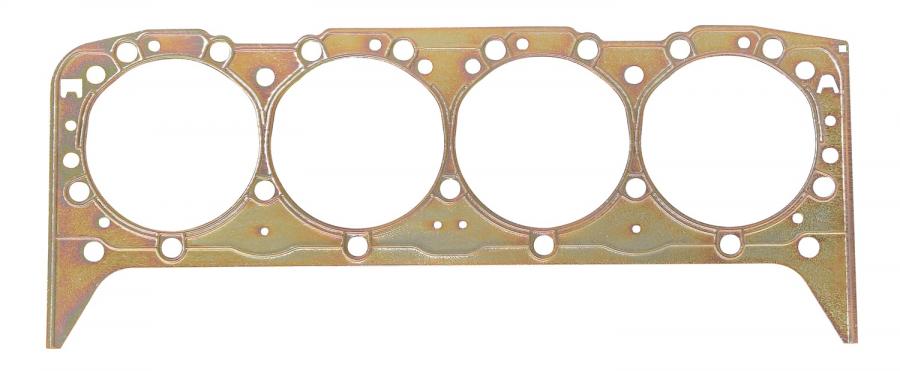

Mr. Gasket Steel Shim Head Gasket 1130G

Mr. Gasket Steel Shim Head Gasket 1130G
$30.99 ea
NEWARRIVING SOONEstimated Ship Date 05/17/2024 (If Ordered Today)
Model: 4010760
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY
Mr. Gasket Steel Shim Cylinder Head Gaskets are for high performance street machines, drag racing and oval track racing. With today's extreme compression ratios you need stronger more durable gaskets. Mr. Gasket steel shim gaskets are made from .020 inch steel shim stock which is thinner than most composite gaskets increasing engine compression. Stress formed embossments will seal the extreme cylinder pressure.
Features:
  • Manufactured from .020" steel shim stock.
  • Thinner than composition head gaskets - increases engine compression.
  • Stress formed embossments seal extreme cylinder pressures.
  • For high performance street, drag race and oval track use.
Note: Steel Shim Gaskets are not recommended for use with aluminum cylinder heads since the endorsements in the gasket will cause indents in the deck surface of the heads.
Installation Notes:
Note: Steel Shim Gaskets are not recommended for use with aluminum cylinder heads since the endorsements in the gasket will cause indents in the deck surface of the heads.

Downloads:

Download Name File Size
97140221.pdf145KB

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Years Engine Fitment Notes
Chevrolet Corvette 1957 4.6L / 283 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; ELASTOMER COATED; 4.1 IN. GASKET BORE; 0.02 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Chevrolet Corvette 1958 4.6L / 283 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; ELASTOMER COATED; 4.1 IN. GASKET BORE; 0.02 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Chevrolet Corvette 1959 4.6L / 283 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; ELASTOMER COATED; 4.1 IN. GASKET BORE; 0.02 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Chevrolet Corvette 1960 4.6L / 283 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; ELASTOMER COATED; 4.1 IN. GASKET BORE; 0.02 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Chevrolet Corvette 1961 4.6L / 283 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; ELASTOMER COATED; 4.1 IN. GASKET BORE; 0.02 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Chevrolet Corvette 1962 5.3L / 327 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; ELASTOMER COATED; 4.1 IN. GASKET BORE; 0.02 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Chevrolet Corvette 1969 5.7L / 350 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; ELASTOMER COATED; 4.1 IN. GASKET BORE; 0.02 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Chevrolet Corvette 1970 5.7L / 350 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; ELASTOMER COATED; 4.1 IN. GASKET BORE; 0.02 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Chevrolet Corvette 1971 5.7L / 350 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; ELASTOMER COATED; 4.1 IN. GASKET BORE; 0.02 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Chevrolet Corvette 1972 5.7L / 350 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; ELASTOMER COATED; 4.1 IN. GASKET BORE; 0.02 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Chevrolet Corvette 1974 5.7L / 350 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; ELASTOMER COATED; 4.1 IN. GASKET BORE; 0.02 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Chevrolet Corvette 1975 5.7L / 350 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; ELASTOMER COATED; 4.1 IN. GASKET BORE; 0.02 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Chevrolet Corvette 1976 5.7L / 350 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; ELASTOMER COATED; 4.1 IN. GASKET BORE; 0.02 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Chevrolet Corvette 1977 5.7L / 350 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; ELASTOMER COATED; 4.1 IN. GASKET BORE; 0.02 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Chevrolet Corvette 1978 5.7L / 350 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; ELASTOMER COATED; 4.1 IN. GASKET BORE; 0.02 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Chevrolet Corvette 1979 5.7L / 350 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; ELASTOMER COATED; 4.1 IN. GASKET BORE; 0.02 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Chevrolet Corvette 1980 5.7L / 350 / V8
5.0L / 305 / V8		 HEAD GASKET; STEEL SHIM; EMBOSSED; ELASTOMER COATED; 4.1 IN. GASKET BORE; 0.02 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Chevrolet Corvette 1981 5.7L / 350 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; ELASTOMER COATED; 4.1 IN. GASKET BORE; 0.02 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Chevrolet Corvette 1982 5.7L / 350 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; ELASTOMER COATED; 4.1 IN. GASKET BORE; 0.02 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Chevrolet Corvette 1984 5.7L / 350 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; ELASTOMER COATED; 4.1 IN. GASKET BORE; 0.02 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Chevrolet Corvette 1985 5.7L / 350 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; ELASTOMER COATED; 4.1 IN. GASKET BORE; 0.02 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Chevrolet Corvette 1986 5.7L / 350 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; ELASTOMER COATED; 4.1 IN. GASKET BORE; 0.02 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Chevrolet Corvette 1987 5.7L / 350 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; ELASTOMER COATED; 4.1 IN. GASKET BORE; 0.02 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Chevrolet Corvette 1988 5.7L / 350 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; ELASTOMER COATED; 4.1 IN. GASKET BORE; 0.02 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Chevrolet Corvette 1989 5.7L / 350 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; ELASTOMER COATED; 4.1 IN. GASKET BORE; 0.02 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Chevrolet Corvette 1990 5.7L / 350 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; ELASTOMER COATED; 4.1 IN. GASKET BORE; 0.02 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Chevrolet Corvette 1991 5.7L / 350 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; ELASTOMER COATED; 4.1 IN. GASKET BORE; 0.02 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;

Specifications:

Application Small Block Chevy
Compressed Thickness .020 inch
Compression Ratio Up to 12:1
Emission Code 5
Engine Chevrolet Small Block Gen I
Gasket Bore 4.100 inch
Gasket Line Performance
Material Steel Shim
Packaging Retail
Part Type Engine Cylinder Head Gasket
Product Type Head Gasket
Quantity Per Pkg. 1
Warranty Limited 90 Day TX, Limited 90 Day
Weight 0.5000
