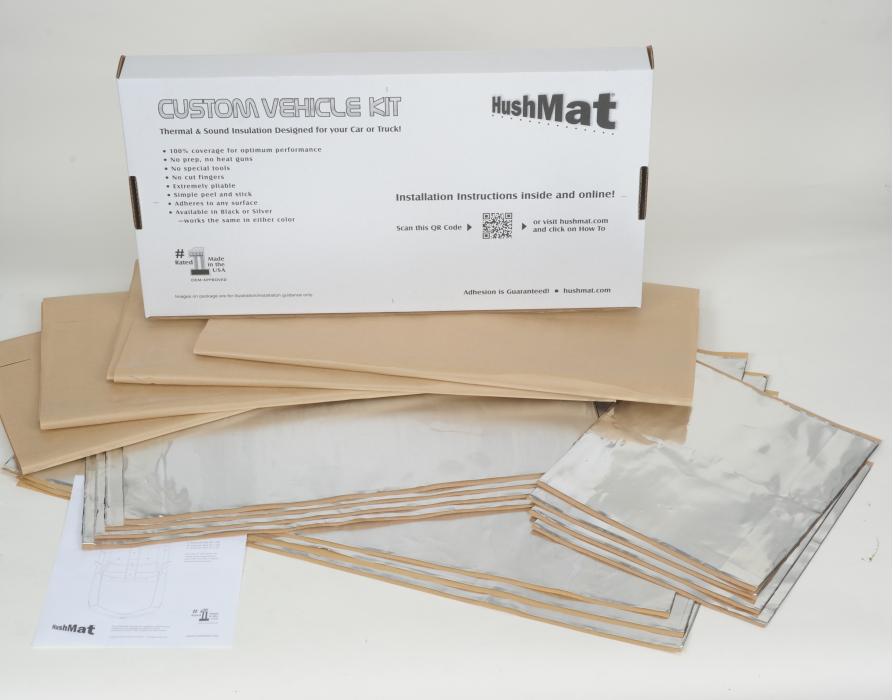

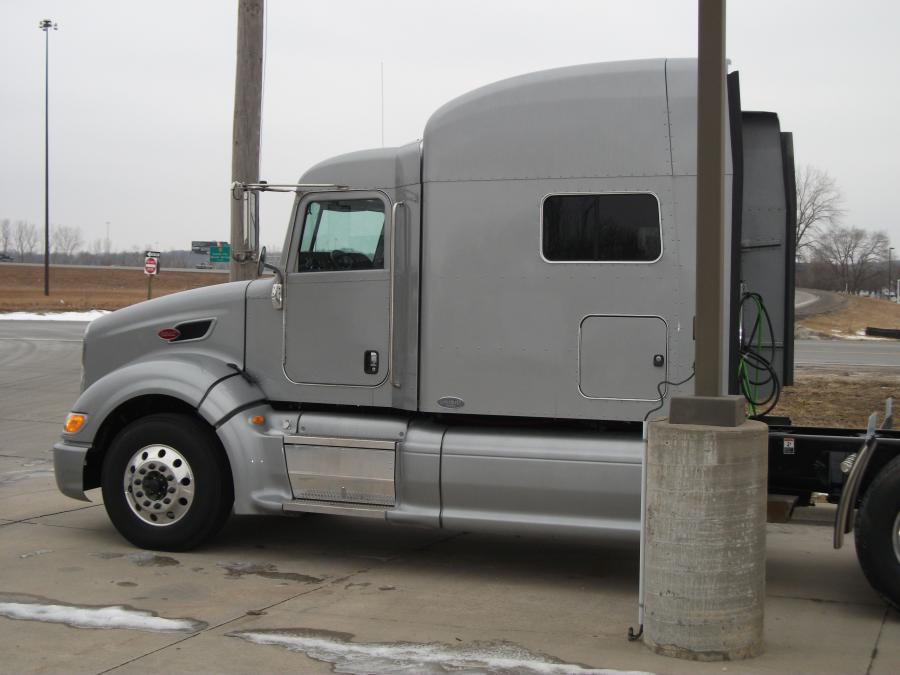

HighTop 63" Sleeper Complete Sound & Thermal Insulation Kit. Treats the floor, roof, rear walls and sleeper sides with the #1 rated sound & thermal insulation material.
Reduce that aftermarket engine, exhaust drone, road noise, vibration and the noise that disrupts your ride and reduce the heat that comes from engine, headers, exhaust and catalytic converter with one USA Made material light weight HushMat Ultra
Easy to install: Lightweight and flexible; Instantly molds to any contour in any temperature; Super-flex foil backing, smooth edges; install in half the time versus the competition. Provides excellent corrosion resistance. Manufactured in the USA. Insulates from -30 degrees Fahrenheit up to 550 plus degrees Fahrenheit, measures slightly less than one-eighth inch thick and weighs 47 hundredths of a pound per square foot, outperforms closest competitor brand by over forty percent, made in the USA for three decades. The HushMat Semi Truck Thermal Insulation Cab Package transforms your truck by reducing the noise and heat up to fifty percent. When driving on the highway at sixty-five or seventy miles per hour, or faster, your truck?s interior is over eighty to ninety decibels. This would be like turning on a garbage disposal or vacuum cleaner in your passenger seat. Fortunately, HushMat is designed to reduce that noise by up to 15 decibels. HushMat also reduces heat from your engine, exhaust, and sunlight from entering into your truck?s interior. When you truck is running, it can generate over 200 degrees Fahrenheit of heat that cooks your firewall and floor pan. These temperatures are often exceeded in the hot summer climates. That means your engine, headers, manifold, and exhaust produce a tremendous amount of heat that transfers through the firewall and floor pan. This heat also causes your air conditioner to work harder to maintain cool temperatures inside your cab. HushMat solves this problem by using USA manufactured visco elastic chemistry to insulate your interior and all allow your air conditioner to function more efficiently and making your truck considerably cooler. In an independent study, HushMat was proven to lower the temperature in your cab by over forty percent.
#1 Rated HushMat provides incredible sound reduction and thermal insulation benefits from technology proven for over a quarter of a century in the automotive, heavy truck, home appliance, recreation and marine industries. Reduce noise and heat. Get the best performance every time with HushMat. Why HushMat? HushMat is the manufacturer – we are not a "marketer" or "manu-packager"- With HushMat you receive the highest quality & highest performing material available. Our competition purchases from multiple sources here and afar and packs whatever is available into their boxes. HushMat – consistent quality means consistent performance! HushMat is the simplest material to install – super flexible, easy to cut and requires no surface prep – just peel & stick even in the harshest climates! HushMat is the #1 rated material as designated by multiple independent studies HushMat was introduced to automobile manufacturers in 1988, and was approved by General Motors and Chrysler for in vehicle production. HushMat is the only company that manufacturers its own sound deadening and specified for use by every automobile manufacturer in the United States, Canada and Mexico. HushMat makes cars, trucks, boats, RV's buses, appliances, HVAC equipment and home theater more Quiet and Comfortable.
|Download Name||File Size|
|HushMat Ultra Specification Sheet.pdf||149.54KB|
|HushMat_Ultra 200-400-800 Hz Graph SAEJ1637.pdf||23.13KB|
|Damping Pad MSDS .pdf||26.43KB|
|HushMat Heavy Truck Floor Pan Data Sheet.PDF||1.34MB|
|HEAVY TRUCK_Sell Sheet_FINAL.pdf||598.16KB|
|Cold Flexibility||Can be bent around 25 mm. mandrel at -30 degrees C with no cracking or loss of adhesion|
|Color||Polymer - Black; Backing - Silver|
|Flammability||Tested per FMVSS 302, HushMat Ultra is self-extinguishing and meets all aspects of the standard|
|Hardness||6.5 - 9.0mm ?ASTM D-5|
|Part Type||Thermal Acoustic Insulation|
|Peel Strength||Tested in 90 degree peel at a crosshead speed of 300mm per minute on a 25 mm wide test specimen. Average load in Newtons is reported.|
|Safety||HushMat Ultra is not considered a hazardous material. Care should be used in handling to avoid cuts from the foil. Gloves are recommended. The Material Safety Data Sheet is available upon request and should be read and understood before using this product.|
|Shelf Life||At least 6 months when stored at 40 degrees C or less|
|Specific Gravity||1.47 (approx. 0.47 pounds per square foot)|
|Temperature Resistance||HUSHMAT ULTRA will withstand a bake of 1 hour at 240 degrees C with no deformation, sag, or flow when baked in horizontal, vertical or inverted positions.|
|Warranty||Seller warrants marketable title to the Product, free and clear of all liens and encumbrances. Seller makes no other express or implied warranties beyond that stated on quoted product, statutory or otherwise.|
