              | Download Name | File Size |
| 199r11214.pdf | 1.09MB |
| Color | Silver |

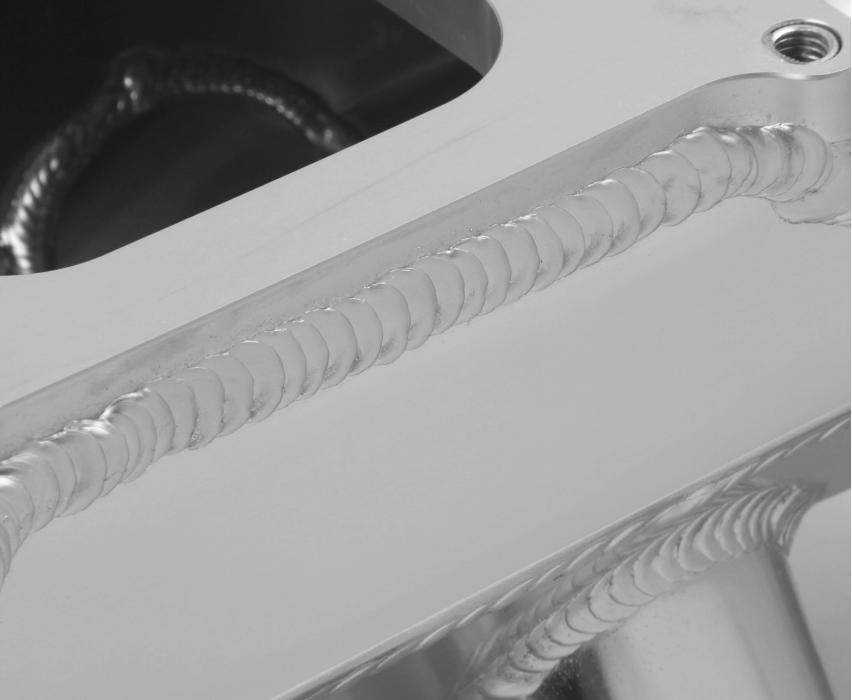

| Construction | Fabricated |
| Emission Code | 4 |
| Engine | GM LS1/LS2/LS6 |
| Finish | Silver |

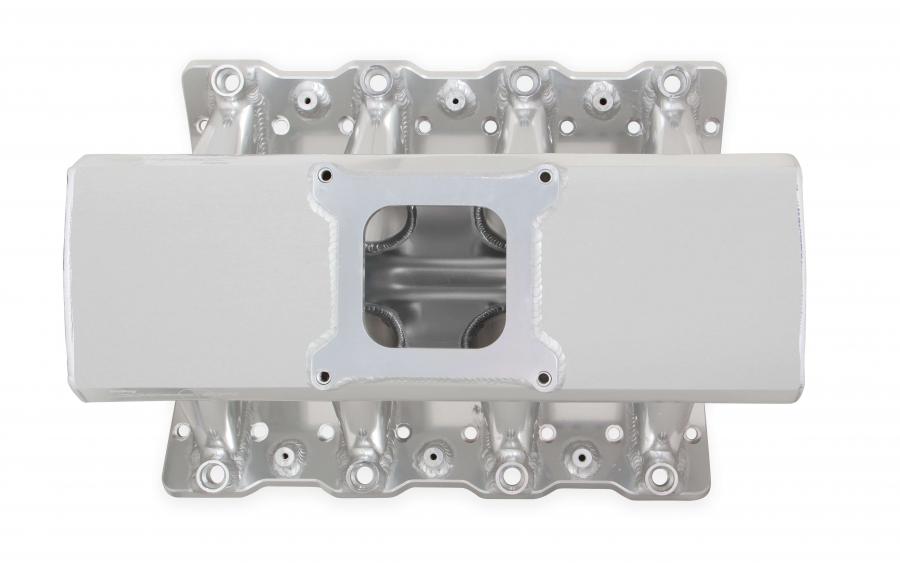

| Flange Size | 4150 |
| Front Height | 8.858 inch |
| Fuel System Type | EFI |

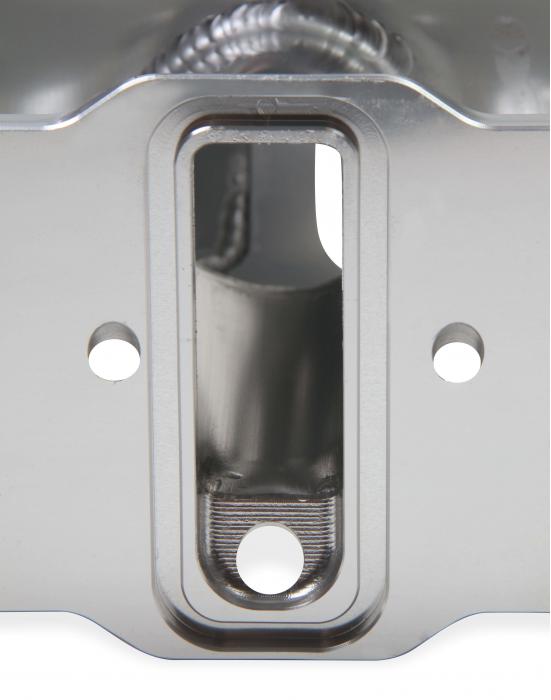

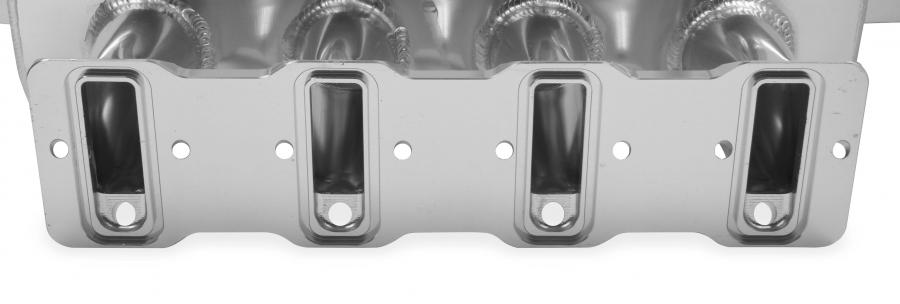

| Injector Style Provision | EV1 |
| Manifold Type | Fabricated |

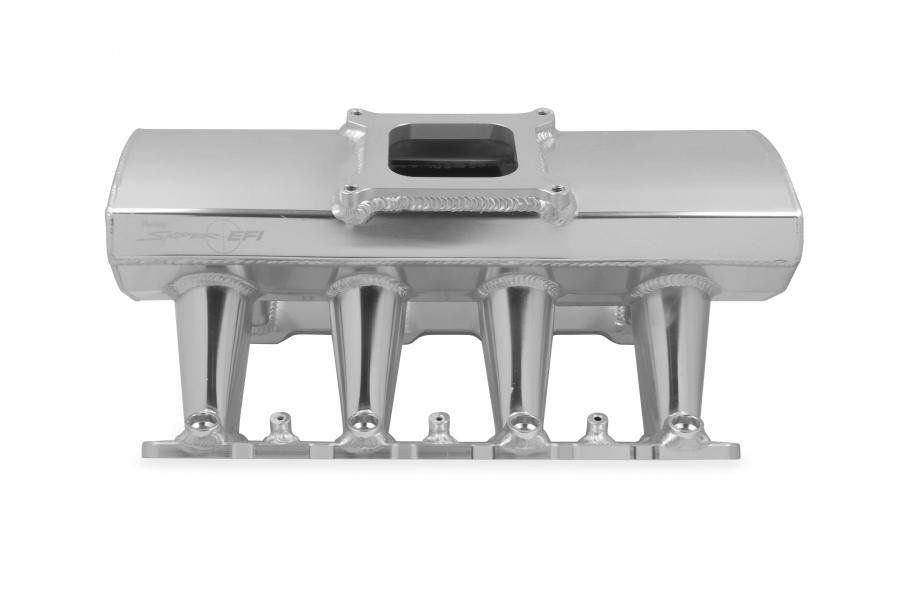

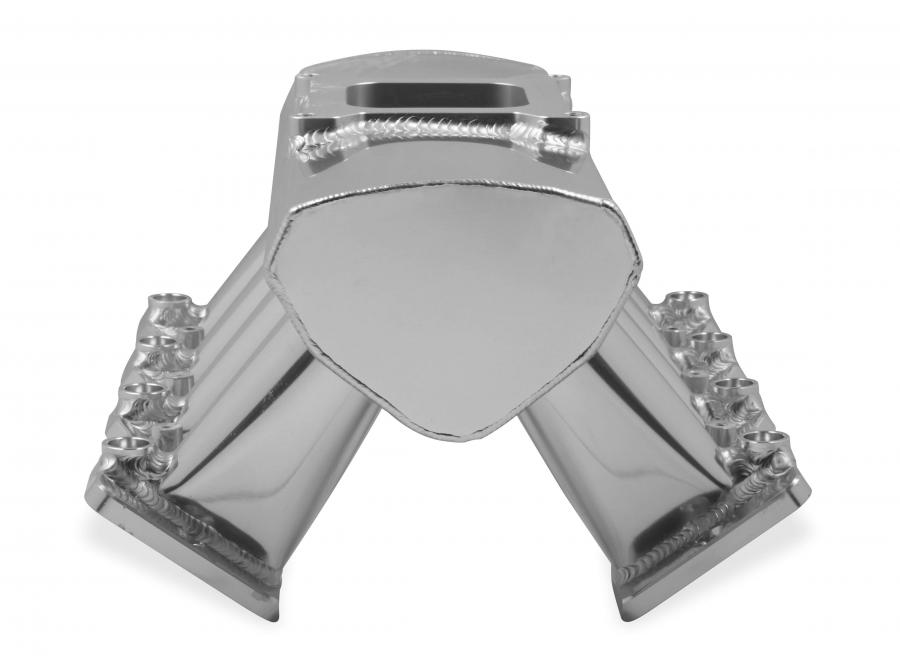

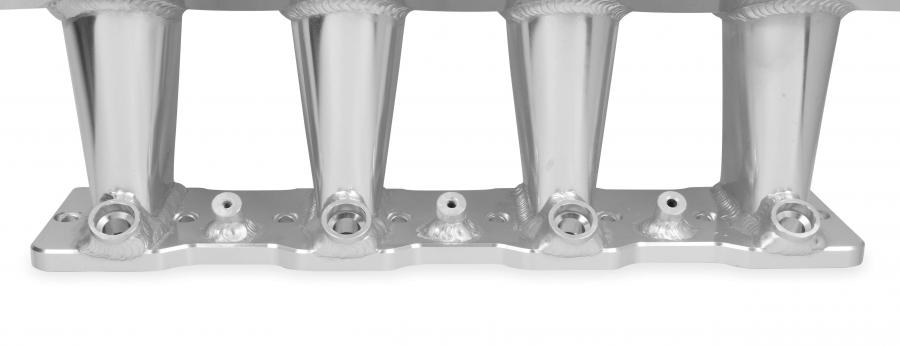

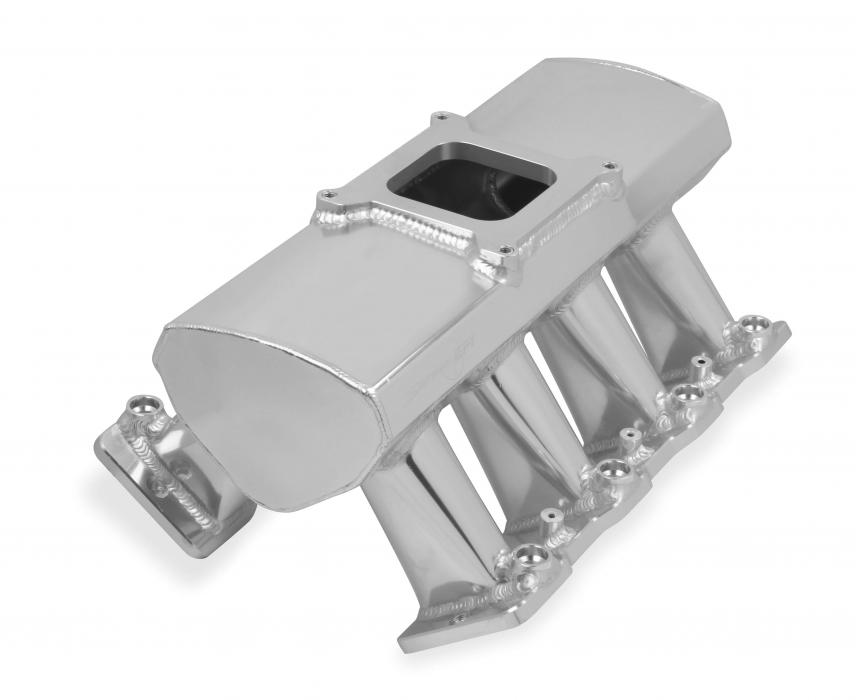

| Part Type | Engine Intake Manifold |
| Product Type | Intake Manifold |
| Rear Height | 8.858 inch |
| Recommended Use | Forced Induction |
| RPM Power Band | 2500-7000 RPM |
| Runner Length | 4.921" (125mm) |
| Style | EFI |
| Throttle Bore | 4150 flange |
| Vacuum Ports | (3) 1/8"-28BSPT & (1) 1/4"-19BSPT |
| Warranty | Limited 90 Day |
