Hays Hydraulic Release Bearing Kit for T-56 and TR6060 Transmissions with GM LS2, LS3, or LS7 Engines 82-106

Hays Hydraulic Release Bearing Kit for T-56 and TR6060 Transmissions with GM LS2, LS3, or LS7 Engines 82-106
Hays Hydraulic Release Bearing Kit for T-56 and TR6060 Transmissions with GM LS2, LS3, or LS7 Engines 82-106Hays Hydraulic Release Bearing Kit for T-56 and TR6060 Transmissions with GM LS2, LS3, or LS7 Engines 82-106Hays Hydraulic Release Bearing Kit for T-56 and TR6060 Transmissions with GM LS2, LS3, or LS7 Engines 82-106Hays Hydraulic Release Bearing Kit for T-56 and TR6060 Transmissions with GM LS2, LS3, or LS7 Engines 82-106Hays Hydraulic Release Bearing Kit for T-56 and TR6060 Transmissions with GM LS2, LS3, or LS7 Engines 82-106Hays Hydraulic Release Bearing Kit for T-56 and TR6060 Transmissions with GM LS2, LS3, or LS7 Engines 82-106Hays Hydraulic Release Bearing Kit for T-56 and TR6060 Transmissions with GM LS2, LS3, or LS7 Engines 82-106Hays Hydraulic Release Bearing Kit for T-56 and TR6060 Transmissions with GM LS2, LS3, or LS7 Engines 82-106Hays Hydraulic Release Bearing Kit for T-56 and TR6060 Transmissions with GM LS2, LS3, or LS7 Engines 82-106
$510.99 ea
NEWARRIVING SOONEstimated Ship Date 04/22/2024 (If Ordered Today)
Model: 4006871
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY

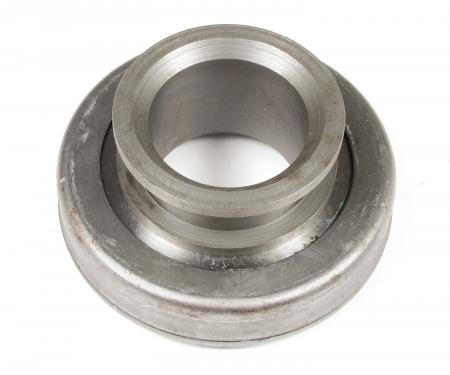

Hays hydraulic release bearings offer an easy method of setting up a hydraulic clutch release system in T-56 and TR6060 6-speed transmissions. Our kits are ideal for applications where a late model manual transmission is being integrated into an early vehicle not originally hydraulic equipped or as an upgrade to your factory hydraulic equipped vehicle. They feature full adjustability, providing an easy setup with any single or dual disc clutch along with offering easy pedal effort. Hays release bearings are a floating design and feature large O-rings and PTFE backup rings in the grooves to help eliminate leakage along with a long service life. A snap ring on the front of the piston prevents over travel and keeps from pushing the bearing off the sleeve. The sealed bearing snaps in place and is easily serviceable.
Features:
  • Designed to fit Tremec T-56 and TR6060 manual transmissions
  • Offers easy way to add easy effort hydraulic clutch actuation
  • Works with single or dual disc clutches
  • Floating design bearing with large O-rings and PTFE backup rings to eliminated fluid leakage
  • Kits include bearing assembly, mounting hardware, adjustment shims plus -3AN bleed and feed lines
The included shims are the following thicknesses: Silver = .065" ; Black = .040". Requires a .750 inch bore master cylinder with a minimum of 1.1 inch stroke
Installation Notes:
The included shims are the following thicknesses: Silver = .065" ; Black = .040". Requires a .750 inch bore master cylinder with a minimum of 1.1 inch stroke

Downloads:

Download Name File Size
199r11651.pdf610.65KB

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Submodel Years Engine
Chevrolet Corvette 427 Limited Edition Z06 2008 7.0L / 427 / V8
Chevrolet Corvette 427 2013 7.0L / 427 / V8
Chevrolet Corvette Base 2005 6.0L / 364 / V8
Chevrolet Corvette Base 2006 6.0L / 364 / V8
Chevrolet Corvette Base 2007 6.0L / 364 / V8
Chevrolet Corvette Base 2008 6.2L / 376 / V8
Chevrolet Corvette Base 2009 6.2L / 376 / V8
Chevrolet Corvette Base 2010 6.2L / 376 / V8
Chevrolet Corvette Base 2011 6.2L / 376 / V8
Chevrolet Corvette Base 2012 6.2L / 376 / V8
Chevrolet Corvette Base 2013 6.2L / 376 / V8
Chevrolet Corvette Grand Sport 2010 6.2L / 376 / V8
Chevrolet Corvette Grand Sport 2011 6.2L / 376 / V8
Chevrolet Corvette Grand Sport 2012 6.2L / 376 / V8
Chevrolet Corvette Grand Sport 2013 6.2L / 376 / V8
Chevrolet Corvette Z06 Carbon 2011 7.0L / 427 / V8
Chevrolet Corvette Z06 2006 7.0L / 427 / V8
Chevrolet Corvette Z06 2007 7.0L / 427 / V8
Chevrolet Corvette Z06 2008 7.0L / 427 / V8
Chevrolet Corvette Z06 2009 7.0L / 427 / V8
Chevrolet Corvette Z06 2010 7.0L / 427 / V8
Chevrolet Corvette Z06 2011 7.0L / 427 / V8
Chevrolet Corvette Z06 2012 7.0L / 427 / V8
Chevrolet Corvette Z06 2013 7.0L / 427 / V8
Chevrolet Corvette ZR1 2009 6.2L / 376 / V8
Chevrolet Corvette ZR1 2010 6.2L / 376 / V8
Chevrolet Corvette ZR1 2011 6.2L / 376 / V8
Chevrolet Corvette ZR1 2012 6.2L / 376 / V8
Chevrolet Corvette ZR1 2013 6.2L / 376 / V8

Specifications:

Bearing Style Hydraulic
Bleed Line Included Yes
Bleed Line Length (inches) 18
Emission Code 5
Feed Line Included Yes
Feed Line Length (inches) 36
Part Type Clutch Release Bearing
Product Type Hydraulic Release Bearing Kit
Proposition 65 www.P65Warnings.ca.gov
Warranty Limited 90 Day Warranty
