all 2nd design: 2 wires connect to each door ajar switch, each switch has 2 flat male blade type terminal connections

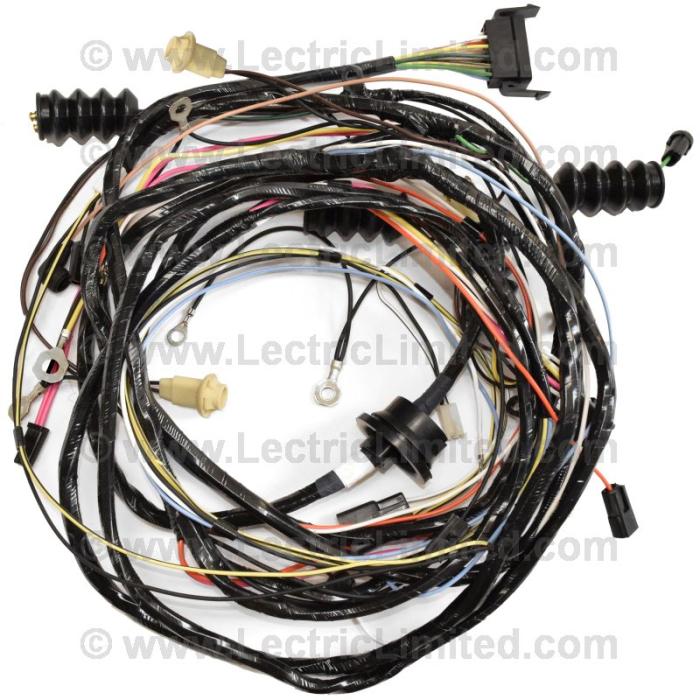

CONNECTS TO:
- Alarm System Flasher
- Alarm System Horn (power feed & ground)(located behind driver side fender)
- Alarm System On/Off Switch (located on rear body panel)
- Alarm System Relay
- Backup Lights (driver & passenger side)
- Backup Lights Ground (driver & passenger side)
- Dash Harness Connection
- Door Ajar Switch (driver & passenger)
- Fuel Tank Sending Unit (ground & return signal terminals)
- Ground (to frame)
- Interior Rear Compartment Light
- License Plate Light Assembly (power feed & ground screw on license light housing)
- Rear Glove Box Light Switch Assembly (passenger side)
- Rear Lights (tail/stop, driver & passenger side)
- Rear Lights Ground (tail/stop, driver & passenger side)
- Rear Side Marker Lights (driver & passenger side)
- Seat Belt Retractor Switch (driver & passenger side)
- Seat Switch Connection (passenger side)
Vehicle Fitment:
The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
| Make |
Model |
Years |
| Chevrolet |
Corvette |
1973 |
IMPORTANT: Electrical items are covered by a 30 day EXCHANGE ONLY WARRANTY. There are no returns or refunds on such items.
