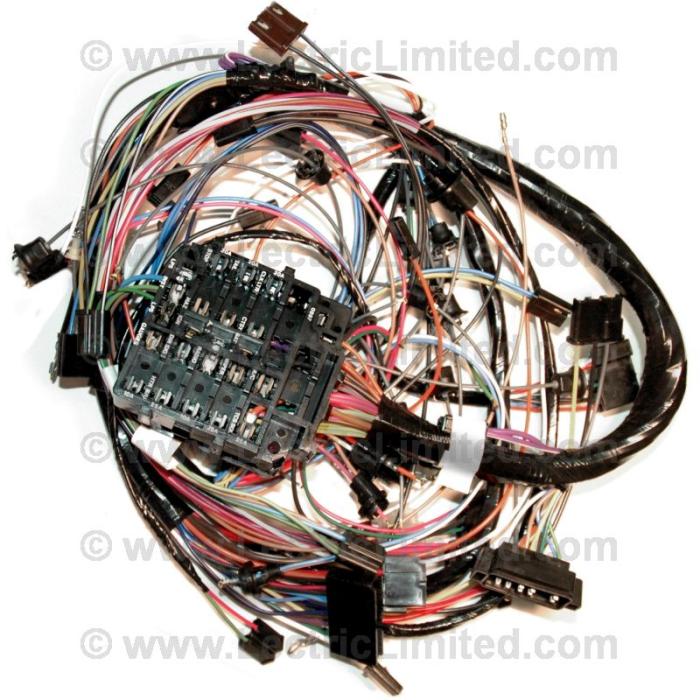

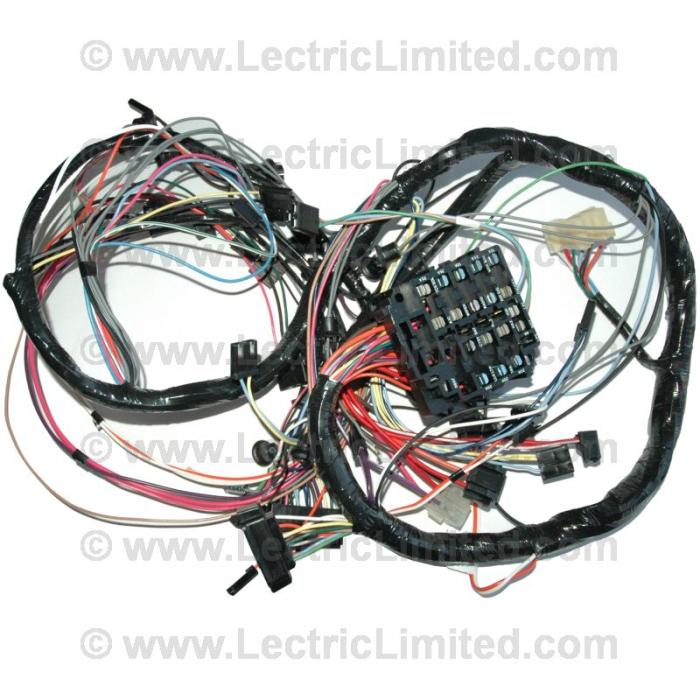

all with air conditioning, 2nd design: harness routes through mounting brackets affixed to upper-backside of speedometer and tachometer
CONNECTS TO:
- Air Conditioning Harness Connection
- Air Conditioning & Heater Control Light
- Ammeter Gauge
- Backup Light Switch Connection (manual transmission)
- Brake Light Switch
- Brake Warning Light
- Bulkhead Connector (passes through firewall)
- Cigarette Lighter
- Cigarette Lighter Light
- Clock
- Console Ground
- Courtesy Light (driver & passenger side)
- Courtesy Light Switch (driver & passenger side)
- Door Ajar Warning Light
- Fuel Gauge
- Fuse Block
- Ground (to hinge pillar inner reinforcement)
- Hazzard Flasher
- Headlight Dimmer Switch
- Headlight Door Warning Light
- Headlight Switch
- Heater Blower Motor Resistor
- Hi-Beam Light
- Ignition Switch
- Instrument Cluster Grounds
- Instrument Lights
- Neutral Safety/Backup Light Switch Connection (automatic transmission)
- Neutral Safety Switch Extension Harness Connection (manual transmission)
- Parking Brake Warning Light Switch
- Radio
- Radio Capacitor
- Rear Body Harness Connection
- Temperature Gauge
- Turn Signal Flasher
- Turn Signal Light (left & right side)
- Turn Signal Switch Connection
- Windshield Wiper & Washer Switch
- Windshield Wiper Door Relay
- Windshield Wiper Door Vacuum Solenoid
- Windshield Wiper Override Switch Connection
Vehicle Fitment:
The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
| Make |
Model |
Years |
| Chevrolet |
Corvette |
1970 |
IMPORTANT: Electrical items are covered by a 30 day EXCHANGE ONLY WARRANTY. There are no returns or refunds on such items.
