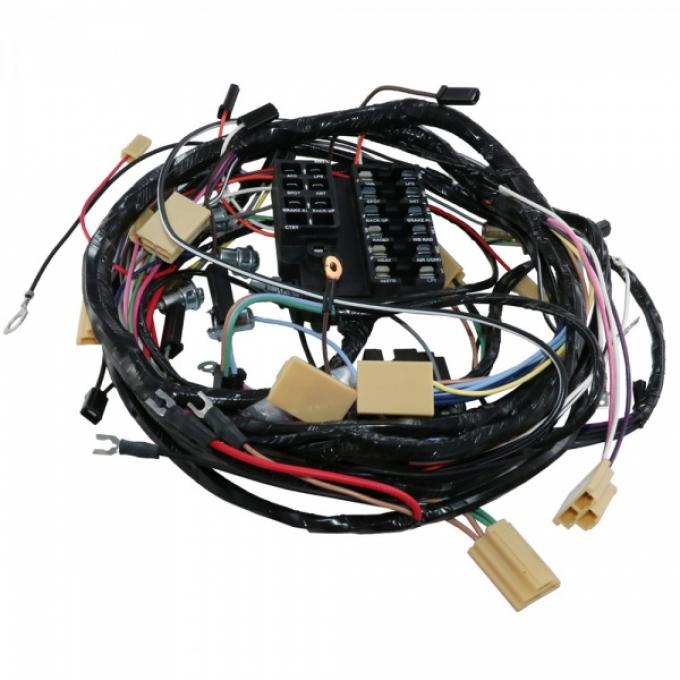

all Note: Requires use of VHX5862 to complete wiring to headlights
CONNECTS TO:
- Ammeter Gauge (driver side terminal)
- Brake Light Switch
- Cigarette Lighter (power feed terminal)
- Cigarette Lighter Light Connection
- Clock
- Courtesy Light Harness Connection
- Courtesy Light Switch (driver & passenger side)
- Front Parking Light Assembly Connection (driver & passenger side)
- Fuel Gauge Terminal (driver & passenger side)
- Fuse Block
- Ground (to heater control plate)
- Ground (to driver side valve cover bolt)
- Headlight Dimmer Switch
- Headlight Extension Harness Connection (driver & passenger side)
- Headlight Switch
- Heater Switch
- High Beam Light
- Horn (driver & passenger side)
- Horn Relay
- Horn Switch Connection
- Ignition Switch ("ACC" terminal & "IGN" bridge terminal)
- Instrument Cluster Grounds
- Instrument Lights
- Radio
- Rear Body Harness Connection
- Temperature Gauge (driver side terminal)
- Turn Signal Flasher
- Turn Signal Light (driver & passenger side)
- Turn Signal Switch Connection
Vehicle Fitment:
The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
| Make |
Model |
Years |
| Chevrolet |
Corvette |
1962 |
IMPORTANT: Electrical items are covered by a 30 day EXCHANGE ONLY WARRANTY. There are no returns or refunds on such items.
