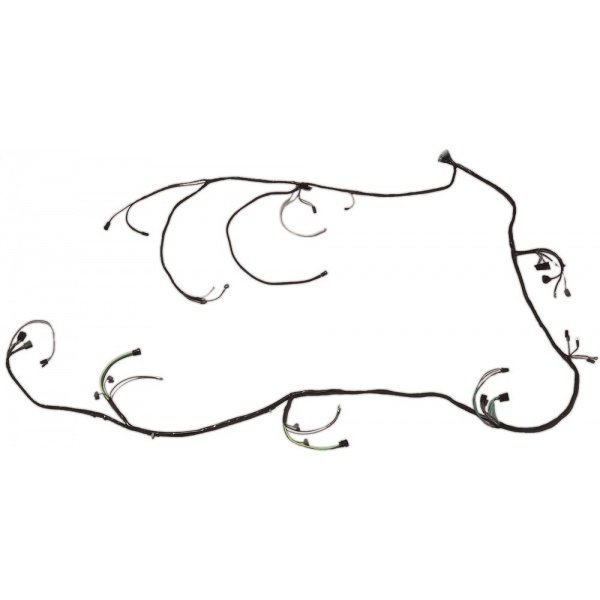

all Note: Requires use of VHX6367 to complete wiring to headlights
CONNECTS TO:
- Alternator
- Dash Harness Connections (at firewall)
- Ground (to headlight motor retainer bolt, driver & passenger side)
- Ground (to horn relay mounting bolt)
- Ground (to starter motor mounting bolt)
- Ground (to voltage regulator)
- Headlight Bucket Extension Harness Connection (driver & passenger side)
- Headlight Door Limit Switch (driver & passenger side)
- Headlight Door Motor (driver & passenger side)
- Heater Blower Motor (cars without A/C)
- Heater Blower Motor Ground Terminal (cars without A/C)
- Horn (driver & passenger side)
- Horn Relay
- Ignition Ballast Resistor (top screw terminal)
- Ignition Coil ("+" terminal)
- Neutral Safety Switch/Backup Light Switch Connection (automatic transmission) -or- Dash Harness Connection (manual transmission)
- Parking Light (driver & passenger side)
- Starter Solenoid
- Temperature Sending Unit
- Voltage Regulator
- Windshield Wiper Motor Ground Terminal
Vehicle Fitment:
The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
| Make |
Model |
Years |
| Chevrolet |
Corvette |
1966 |
IMPORTANT: Electrical items are covered by a 30 day EXCHANGE ONLY WARRANTY. There are no returns or refunds on such items.
