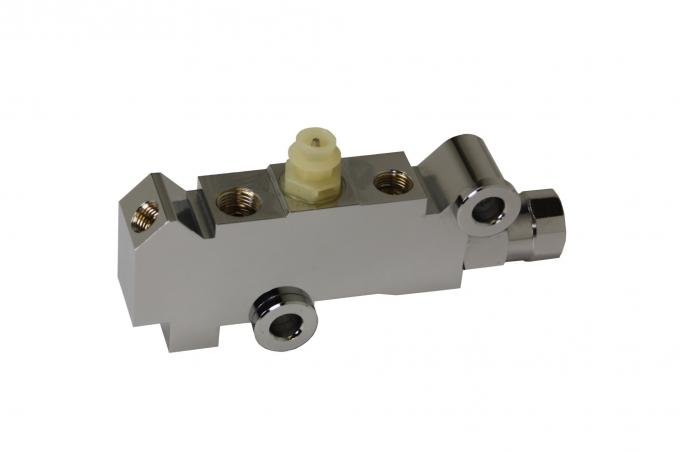

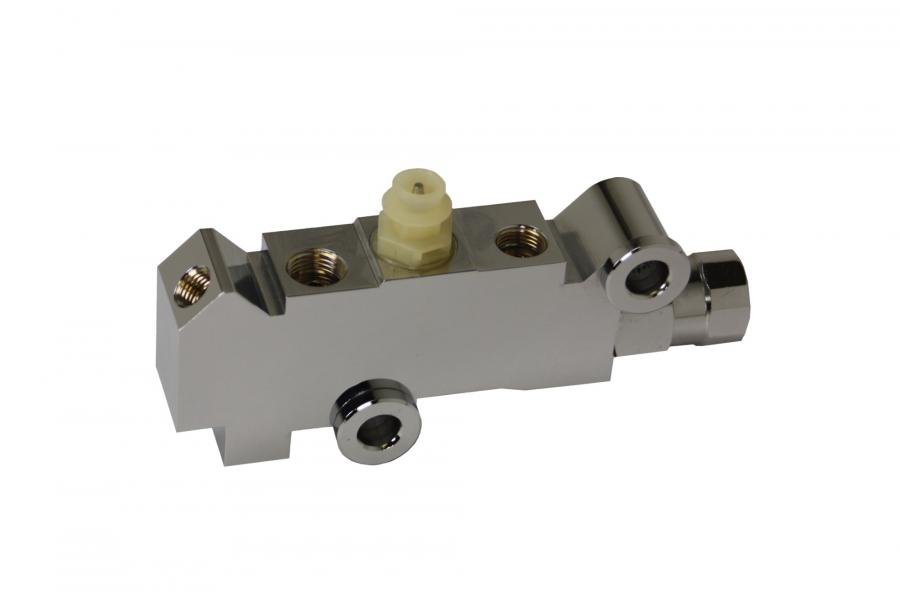

Leed Brakes Proportioning Valve, Disc/Disc Chrome PV4_C

Leed Brakes Proportioning Valve, Disc/Disc Chrome PV4_C
$102.99 ea
NEWARRIVING SOONEstimated Ship Date 07/02/2024 (If Ordered Today)5 Available from LEED BRAKES as of 06/21/2024
Model: 4841132
This product has universal fitment. Please check description and specifications to ensure that this product will work with your vehicle.
Leed Brakes proportioning valves insure the correct brake pressure is provided to each wheel for safe controlled stops. Available in fixed or adjustable and a variety of finishes we have the correct valve to complete your installation.
Add safety to your brake system with this 4 wheel disc brake chrome proportioning valve. When upgrading to a dual bowl master cylinder is it always wise to add a universal proportioning valve equipped with a safety switch. The safety switch built into this valve senses when your brake system is producing unequal or lower pressure to one or more of the wheels, usually caused by a component failure. When the valve senses this drop or change in pressure it will cut off the pressure to the port supplying fluid to the defective brakes, thus stopping the leak. At this point you have noticed a change in your pedal feel, your brakes stopping ability and possibly the warning light on your dashboard. You will now be able to safely pull the vehicle off the road without causing harm to you or your vehicle. Without this 4 wheel disc brake proportioning valve installed if a component fails on your vehicle your brake pedal will drop to the floor as you pump the pedal with little to no braking. Brakes are the most important component on your vehicle, do it right the first time, be safe.
  • Proportioning Valve - Disc/Disc Chrome
Ships in 1 Box.
About Leed Brakes

LEED BRAKES carries a full line of drum to disc brake conversion kits, power brake booster kits, master cylinder kits and many hard to find brake accessories for your Muscle Car, Classic Truck and Street Rod.

LEED BRAKES was started by automotive enthusiasts determined to provide its customers with the highest quality automotive solutions at a fair price. Nestled in the heart of Buffalo NY, LEED BRAKES is amongst some of the largest car enthusiasts in the nation. Yes, our weather may not be ideal for 8 months of the year, but it gives us plenty of time, locked up in our garages, to reveal our custom creations in the Spring.

With gasoline running through our veins, we are dedicated to provide you with the best customer service, product quality, and speedy delivery. Our technical support staff is also on hand to answer any questions you may have about our products or your latest brake project.


Adjustment Type Fixed
Color Chrome
Grade Type Regular
Inlet Attachment Front - 1/2-20, Rear 7/16-24
Inlet Port Inside Diameter 1/2-20, 7/16-24 IN
Inlet Port Quantity 2
Inlet Quantity 2
Length 5.400 IN
Material Brass
Maximum Height 1.900 IN
Maximum Width 1.125 IN
Mounting Bracket Included No
Mounting Hole Quantity 2
Outlet Port Inside Diameter 3/8-24, 9/16-18 IN
Outlet Port Quantity 3
Outlet Quantity 3
Part Type Brake Proportioning Valve
Proposition 65 WARNING: Cancer and Reproductive Harm
Terminal Quantity 1
Terminal Type Pin
Warranty Limited Warranty, See PDF TX
Warranty Time 1 YR
