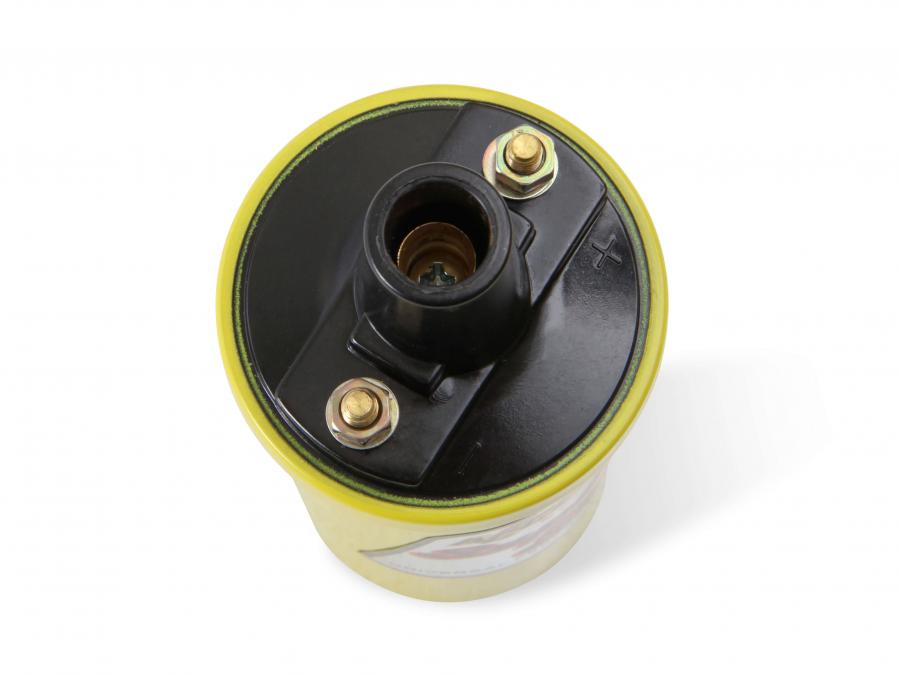

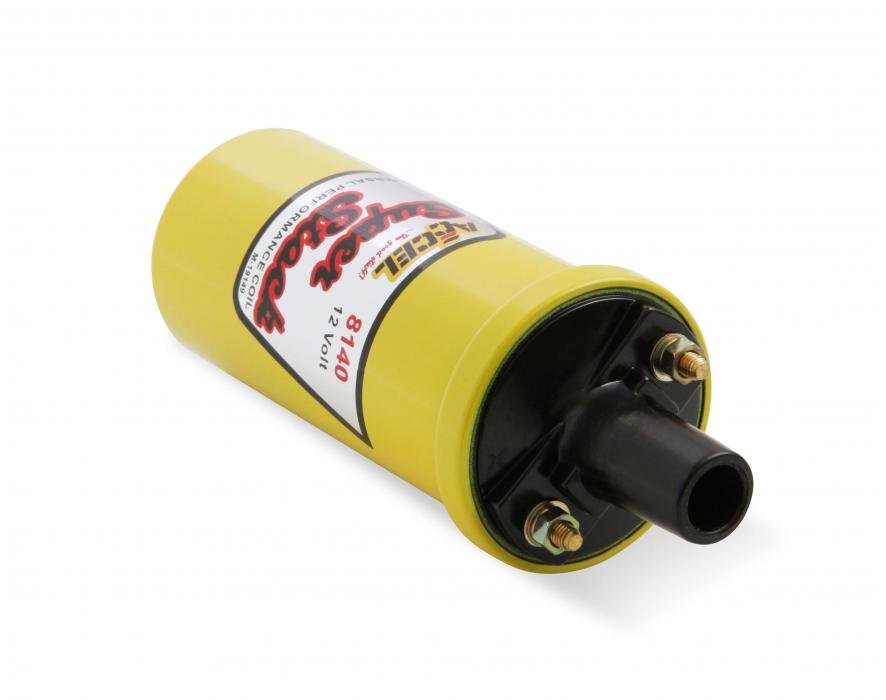

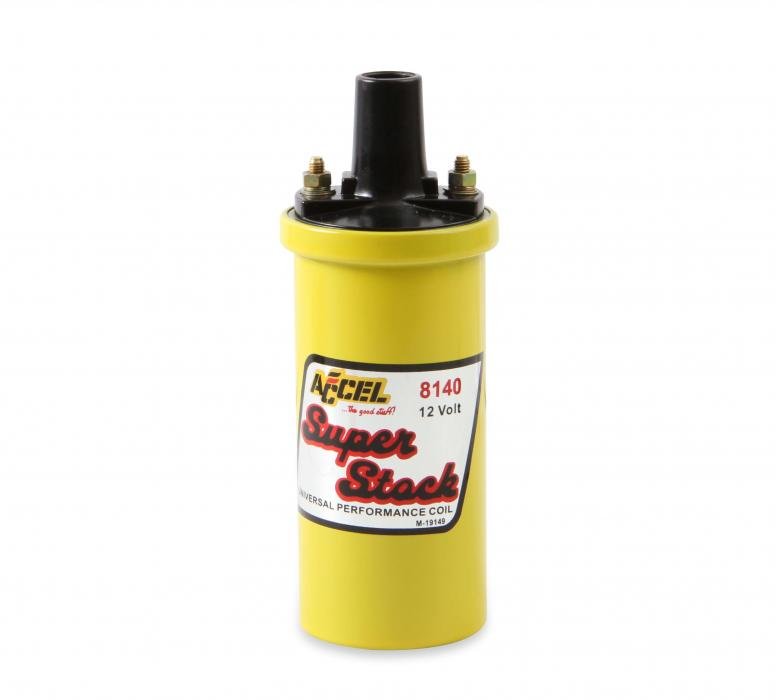

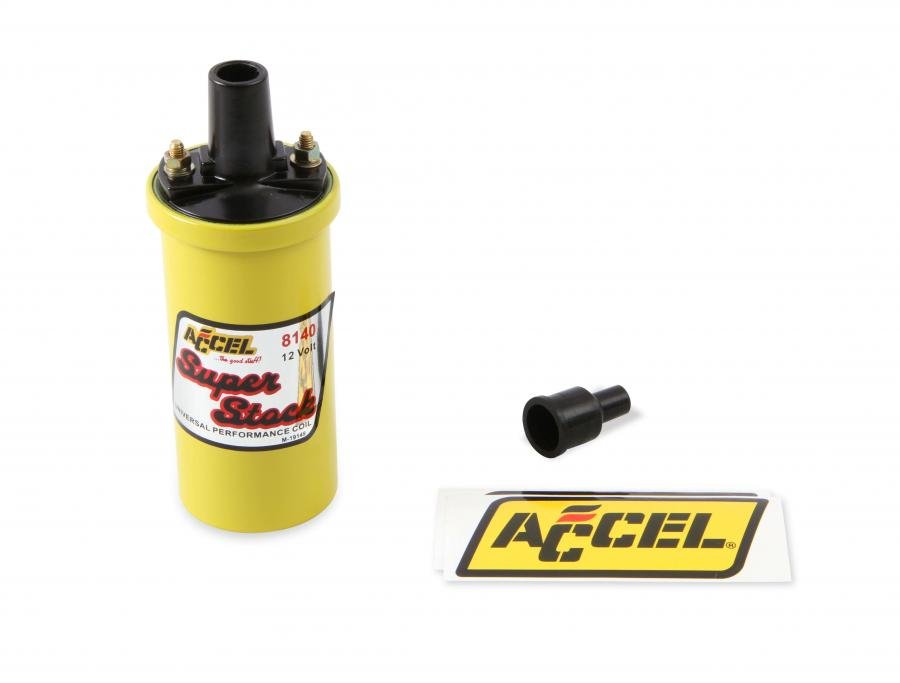

Excellent high performance replacement for import and domestic vehicles with canister type oil filled coil. Re-engineered windings for even higher energy output resulting in quicker starting improved throttle response and more high RPM power. Designed to work with Points style and Breakerless electronic ignition systems. Heavy duty black Alkyd tower provides in flashover in protection to primary terminals. ACCEL Yellow can. 42000 volts effective up to 6500 RPM 1.4 ohms on the primary
Features:
42000 Volts
Effective To 6500 RPM
Specifications:
Application
Universal
C.A.R.B. EO #
D-221
Color
Yellow
Emission Code
1, 3
Finish
Satin
Material
Steel
Maximum Voltage
42,000 Volts
Ohms Secondary Resistance
9.2 k
Ohms Turns Ratio
94:1
Part Type
Ignition Coil
Primary Resistance
1.4
Product Type
Ignition Coils
Quantity
1
Quantity Per Pkg.
1
Warranty
Limited 1 Year Warranty TX, Limited 90 Day Warranty
