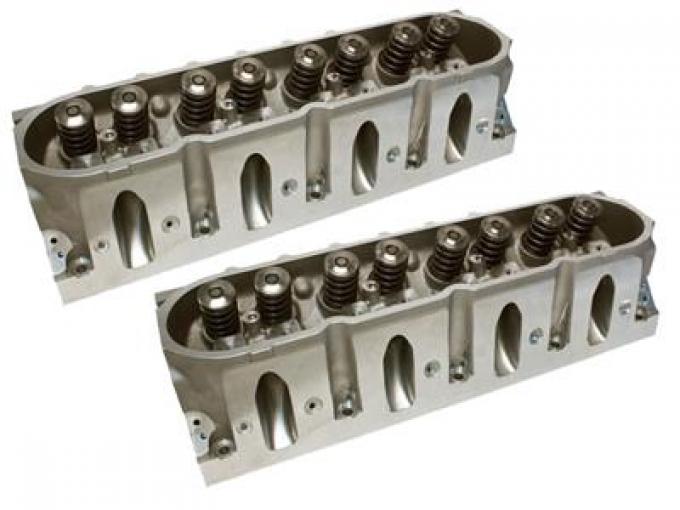

AFR's LS1 head offers unmatched flow performance (300 CFM at .600lift) and features 2.020 intake and 1.600 exhaust valves with AFR's iron ductile interlocking valve seats. With only 205cc port volume, this is a 70 CFM increase over stock casting and is ideal for normally aspirated 346C.I. to 396C.I. It is available with 66cc and 76cc combustion chambers. AFR's LS1 is a direct bolt-on. Structural features like AFR'S trademark 3/4" thick head deck, reinforced rocker stud bosses, and thick wall runners provide unparalleled durability. An exclusive new modern combustion chamber design with a double quench pad area helps the LS1/LS6/LS2 generate substantial low and mid-lift airflow numbers.
Note: Hydraulic roller cams in "LS" Gen III engines typically experience valve float at 6600-6800 RPMs. If you plan on running over .600 gross valve lift, 6600 RPM, or both, our upgrade spring has a higher seat and open pressures (145/390+) to better reduce the risk of valve float in more aggressive applications.
SCREW
Vehicle Fitment:
The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
| Make |
Model |
Years |
| Chevrolet |
Corvette |
1997 - 2010 |
