- Correct reproduction.
- Functionally correct in every way.
- Flat rectangular Bi-Metallic thermostatic element

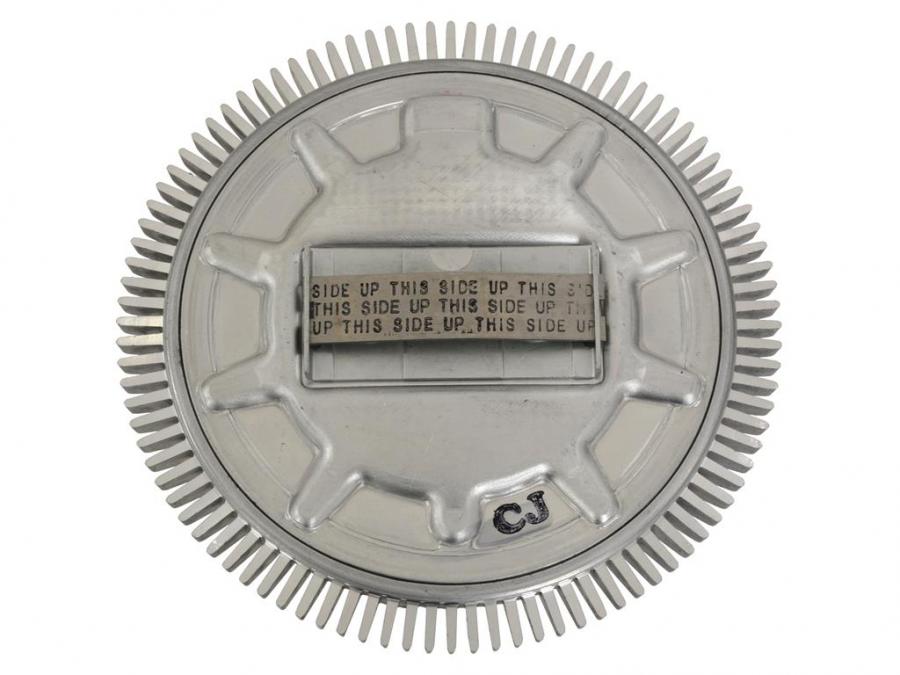

- Stamped CJ.
- Uses modern technology to operate more effectively.
- New design seals offer greater leak resistance.
- Modern ball bearings ensure no "wobble", smooth operation up to 9000RPM.
- Fully engaged at 165 degrees F to obtain maximum cooling.
- 2-year warranty.

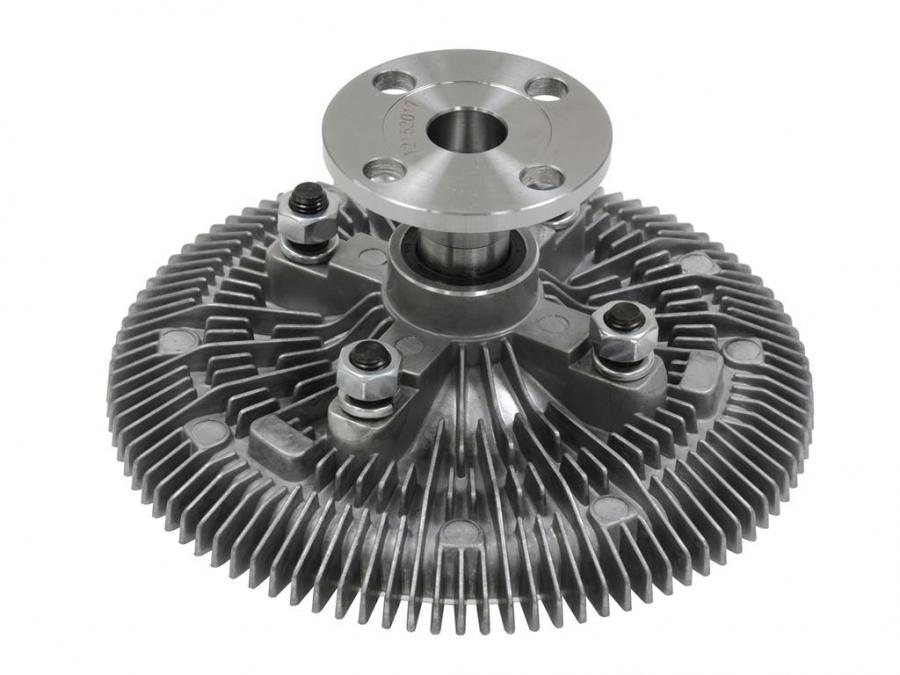

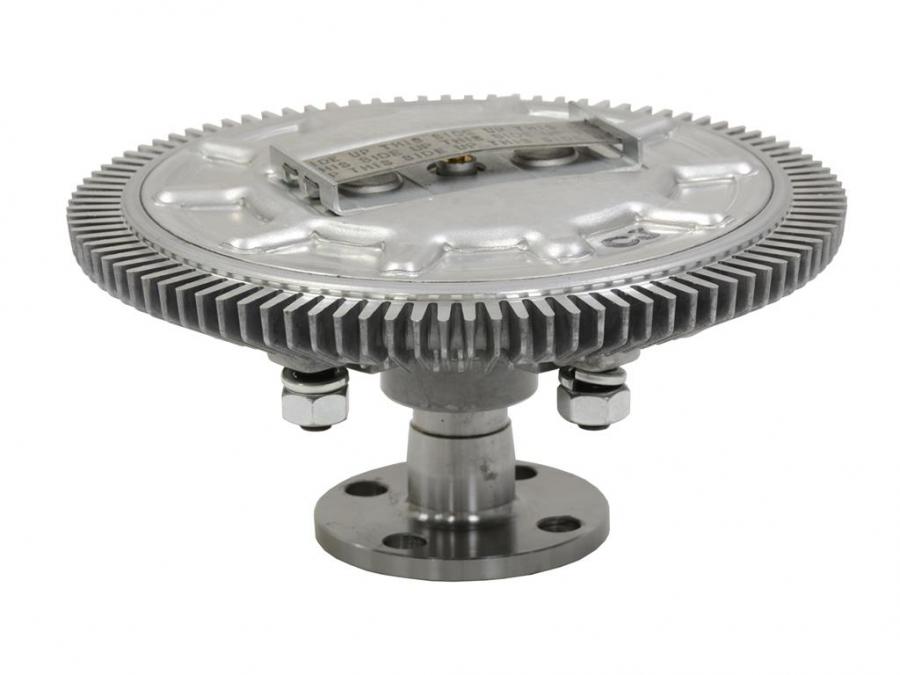

The 1961-1967 Schwitzer Style Fan Clutch is a coupling between the water pump and the fan blade that allows the fan to be operational at low speeds and disconnected at higher speeds. With the engine off and cold, the fan should be free to turn. Once the engine is warmed up, the fan should be more difficult to turn. It also should not free-turn after the engine is shut off.
Reach = 1 3/8 inches, pump flange bolt circle = 1 3/4 inches, fan bolt circle = 3.0 inches.
C1 C2 CORVETTE COOLING FANS CLUTCHES 242313
Vehicle Fitment:
The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
| Make |
Model |
Years |
| Chevrolet |
Corvette |
1961 - 1967 |
