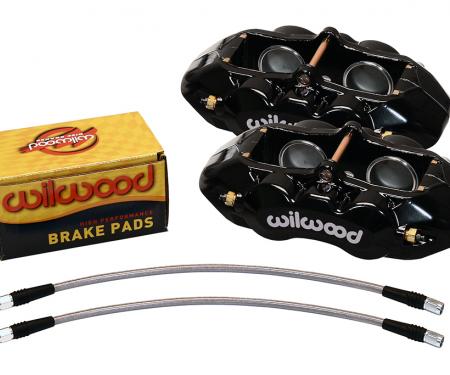

STANDARDThese calipers are a direct bolt on replacement for 1965-82 Corvettes that utilize all the modern engineering benefits that have made Wilwood calipers the industry standard for 30 years. The calipers start with a forged aluminum body that greatly increases rigidity while reducing the weight compared to a cast iron replacement caliper. The factory cast iron caliper weighs in a 13.2 lbs, and this one is 5.8 lbs. That's a 56% reduction in unsprung weight. They are fitted with stainless steel pistons and sealed by square cut O-rings retained in the bore by a groove in the caliper body. This design offers years of service with no maintenance. The Platinum E-coat finish wipes clean like any painted surface, and won't discolor with heat or sun exposure. The calipers are designed to bolt directly on to the factory mounts using factory pads, rotors, hubs and master cylinder with no modifications. The piston sizes mirror the factory caliper it is replacing, therefore pedal travel and master cylinder function will be unchanged. The factory D8 style pad shape is used in our new calipers making replacement pads widely available. Wilwood's D8 caliper comes with braided stainless brake hoses and their BP-10 compound performance pads. The BP-10 friction material offers the increased friction and a higher heat range of a race pad while maintaining low noise and dust characteristics of a street pad, exemplifying the phrase high performance.

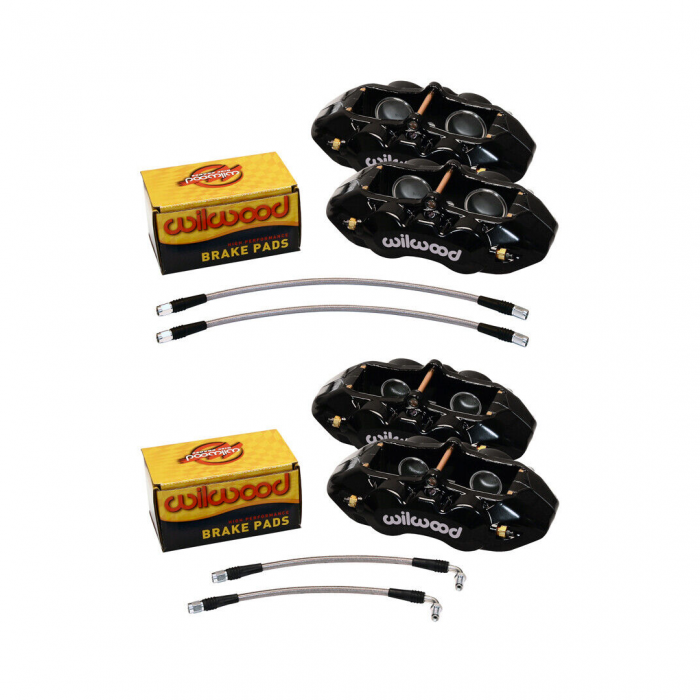

| Quantity | Model | Product Name |
| 1 | 3490414 | Wilwood Brakes 1965-1982 Chevrolet Corvette D8-4 Front Replacement Caliper Kit 140-10789-BK |
| 1 | 3490413 | Wilwood Brakes 1965-1982 Chevrolet Corvette D8-4 Rear Replacement Caliper Kit 140-10790-BK |
| Make | Model | Years |
| Chevrolet | Corvette | 1965 - 1982 |
