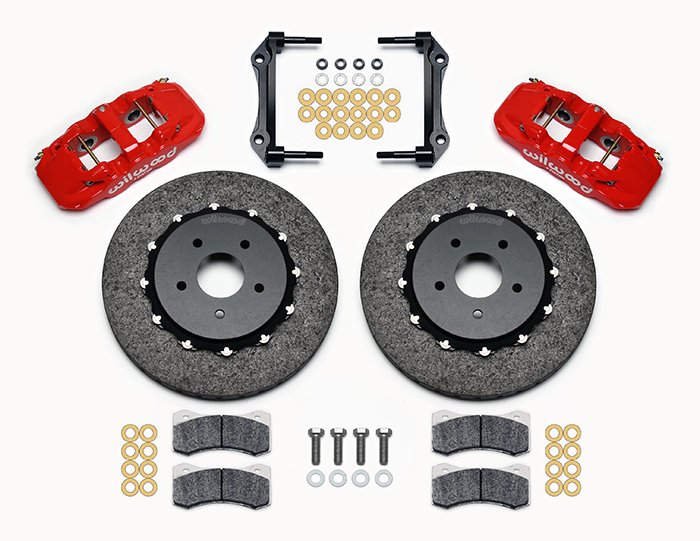

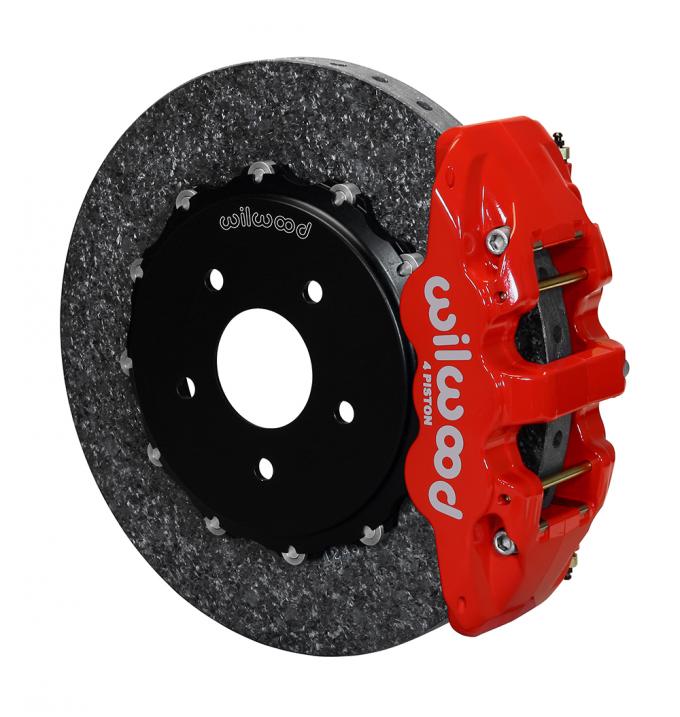

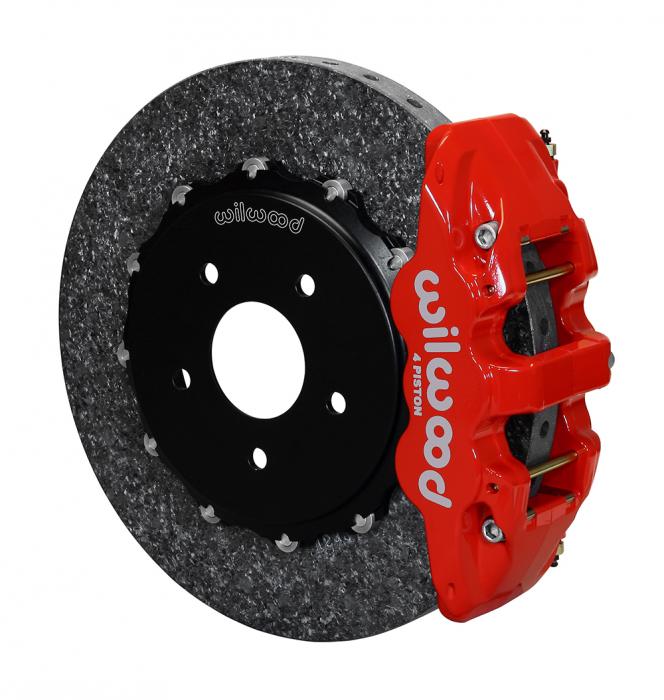

STANDARDAERO4 WCCB Carbon-Ceramic Rotor Rear OE Parking Brake Kits offer an extreme performance upgrade featuring WCCB Carbon-Ceramic Dynamic Mount Rotors with Wilwood’s exclusive Bobbin Mounting System. AERO4 WCCB kits are engineered to maximize braking capacity inside custom wheels. Rear parking brake kits offer a simple bolt-on installation with OE original internal shoe parking brakes for outstanding holding power and are fully compatible with ABS and OE master cylinder output. AERO4 calipers are a competition proven and offer fully detail machined forged caliper body demonstrates superior strength and resistance to deflection and separation under high load. A high temperature, fluid resistant “Quick-Silver“ Nickel plate is the standard for performance, other colors (Black and Red powder coat) are available as options. 14.00” WCCB rotors are made from a proprietary blend ceramic matrix composite material commonly known as Carbon-Ceramic and dynamically using Wilwood’s proprietary integrated anti-rattle Bobbin Mounting System. WCCB rotors offer higher thermal conductivity and heat capacity in excess of conventional iron or titanium rotors of similar or even greater weight and have been developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking and wear.
Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.
With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.
Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.
Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.
| Download Name | File Size |
| ds990.pdf | 511.75KB |
| Make | Model | Submodel | Years | Fitment Notes |
| Chevrolet | Corvette | 427 | 2013 | KIT,REAR,C5 97-04/C6 05-13 VETTE,AERO4 14.00 C/SiC ROTOR,RED; RTR:14.00-IN DIA, WCCD CARBON-CERAMIC, PLAIN FACE; CLPR:AERO4, 4-PISTON, RED POWDER COAT 14" Rotor Kit will require aftermarket wheel spacers of 1/8th" (not included in kit) for rear kit installation with OE wheels. |
| Chevrolet | Corvette | Base | 2009 - 2013 | KIT,REAR,C5 97-04/C6 05-13 VETTE,AERO4 14.00 C/SiC ROTOR,RED; RTR:14.00-IN DIA, WCCD CARBON-CERAMIC, PLAIN FACE; CLPR:AERO4, 4-PISTON, RED POWDER COAT 14" Rotor Kit will require aftermarket wheel spacers of 1/8th" (not included in kit) for rear kit installation with OE wheels. |
| Chevrolet | Corvette | Base | 2005 - 2008 | KIT,REAR,C5 97-04/C6 05-13 VETTE,AERO4 14.00 C/SiC ROTOR,RED; RTR:14.00-IN DIA, WCCD CARBON-CERAMIC, PLAIN FACE; CLPR:AERO4, 4-PISTON, RED POWDER COAT 14" Rotor Kit will require aftermarket wheel spacers of 1/8th" (not included in kit) for rear kit installation with OE wheels. C-6 - Base |
| Chevrolet | Corvette | Grand Sport | 2010 - 2013 | KIT,REAR,C5 97-04/C6 05-13 VETTE,AERO4 14.00 C/SiC ROTOR,RED; RTR:14.00-IN DIA, WCCD CARBON-CERAMIC, PLAIN FACE; CLPR:AERO4, 4-PISTON, RED POWDER COAT 14" Rotor Kit will require aftermarket wheel spacers of 1/8th" (not included in kit) for rear kit installation with OE wheels. |
| Chevrolet | Corvette | Z06 Carbon | 2011 | KIT,REAR,C5 97-04/C6 05-13 VETTE,AERO4 14.00 C/SiC ROTOR,RED; RTR:14.00-IN DIA, WCCD CARBON-CERAMIC, PLAIN FACE; CLPR:AERO4, 4-PISTON, RED POWDER COAT 14" Rotor Kit will require aftermarket wheel spacers of 1/8th" (not included in kit) for rear kit installation with OE wheels. |
| Chevrolet | Corvette | Z06 | 2009 - 2013 | KIT,REAR,C5 97-04/C6 05-13 VETTE,AERO4 14.00 C/SiC ROTOR,RED; RTR:14.00-IN DIA, WCCD CARBON-CERAMIC, PLAIN FACE; CLPR:AERO4, 4-PISTON, RED POWDER COAT 14" Rotor Kit will require aftermarket wheel spacers of 1/8th" (not included in kit) for rear kit installation with OE wheels. |
| Chevrolet | Corvette | Z06 | 2006 - 2008 | KIT,REAR,C5 97-04/C6 05-13 VETTE,AERO4 14.00 C/SiC ROTOR,RED; RTR:14.00-IN DIA, WCCD CARBON-CERAMIC, PLAIN FACE; CLPR:AERO4, 4-PISTON, RED POWDER COAT 14" Rotor Kit will require aftermarket wheel spacers of 1/8th" (not included in kit) for rear kit installation with OE wheels. C-6-Z06 Models |
| Chevrolet | Corvette | ZR1 | 2009 - 2013 | KIT,REAR,C5 97-04/C6 05-13 VETTE,AERO4 14.00 C/SiC ROTOR,RED; RTR:14.00-IN DIA, WCCD CARBON-CERAMIC, PLAIN FACE; CLPR:AERO4, 4-PISTON, RED POWDER COAT 14" Rotor Kit will require aftermarket wheel spacers of 1/8th" (not included in kit) for rear kit installation with OE wheels. |
| Chevrolet | Corvette | 1997 - 2004 | KIT,REAR,C5 97-04/C6 05-13 VETTE,AERO4 14.00 C/SiC ROTOR,RED; RTR:14.00-IN DIA, WCCD CARBON-CERAMIC, PLAIN FACE; CLPR:AERO4, 4-PISTON, RED POWDER COAT 14" Rotor Kit will require aftermarket wheel spacers of 1/8th" (not included in kit) for rear kit installation with OE wheels. C-5 & Z06 Models |
| Details | |
| Part Type | Disc Brake Caliper / Rotor / Pad Kit |
| Kit Summary | |
| Axle Offset | 0.00 |
| Caliper Type | 4 - Red Powder Coat |
| Min Wheel Diameter Req'd* | 18 |
| Mount Type | Radial |
| Rear End Axle | OEM |
| Rotor Diameter | 14.00 |
| Kit Components & Specs / Rotors | |
| Bedded | No |
| Design Type | C/SiC |
| Dynamically Balanced | No |
| Left Hand - Part No | 160-12441 |
| Material | C/SiC |
| Outside Diameter (in) | 14.00 |
| Right Hand - Part No | 160-12441 |
| Style | Plain Face |
| Surface Finish | Plain |
| Type | WCCD Carbon-Ceramic |
| Vane Count | 24 V |
| Width (in) | 1.10 |
| Parts & Accessories / Caliper Parts | |
| Bleed Screw Kit | 220-0627 |
| O-ring Kit | 130-2579 |
| Replacement Piston 1 | 200-7513 |
| Replacement Piston 2 | 200-7513 |
| Wear Plate - Left Hand | 300-5876 |
| Wear Plate - Right Hand | 300-5876 |
| Kit Components & Specs / Rotor Hats | |
| Bolt Circle 1 | 5 x 4.75 |
| Finish Color | Type III Anodize |
| Hat - Part No | 170-13160 |
| Hat Offset Dimension (in) | 0.660 |
| Material | Aluminum |
| Stud Diameter - BC 1 | 0.520 |
| Stud Diameter - BC 2 | 0.000 |
| Stud Diameter - BC 3 | 0.000 |
| Type | Parking Brake Hat - Dynamic Bobbin Mount |
| Parts & Accessories / Hat | |
| Bolt Kit | Call |

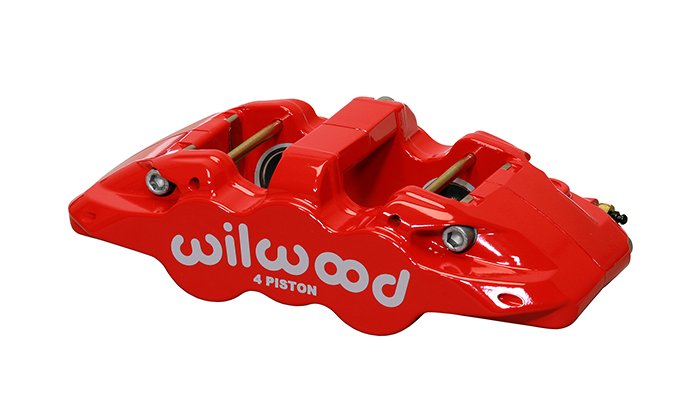

| Kit Components & Specs / Calipers | |
| Brake Pad Area (In²) | 11.1 |
| Brake Pad Plate | 6617 |
| Brake Pad Volume (In³) | 5.2 |
| Finish Color | Red Powder Coat |
| Left Hand - Part No | 120-13338-RD |
| Mount Type | Radial |
| Pad Compound | PCM |
| Piston 1 Bore (in) | 1.12 |
| Piston 2 Bore (in) | 1.12 |
| Piston Area (In²) | 1.98 |
| Piston Count | 4 |
| Piston Type | Stainless |
| Right Hand - Part No | 120-13338-RD |
| Type | AERO4 |
| Parts & Accessories / Brake Lines | |
| Front Line Kit | 220-8177, 220-9101 |
