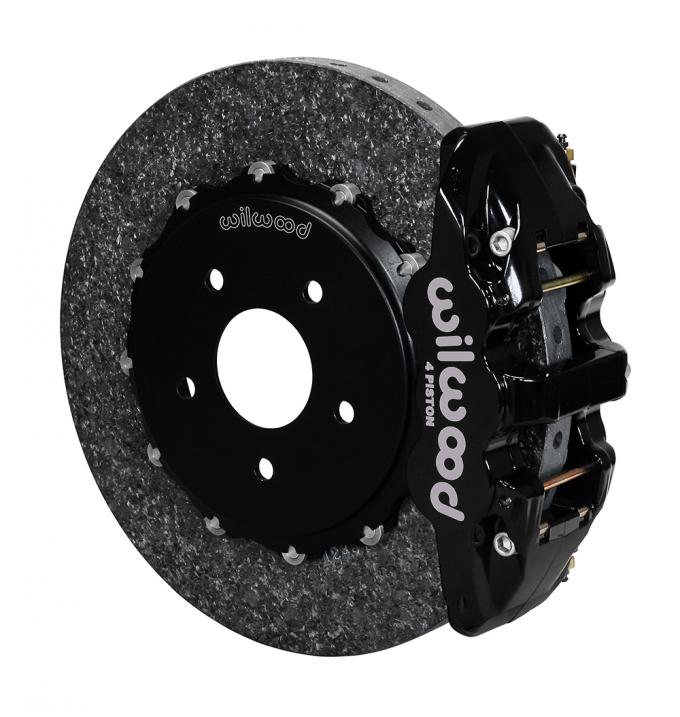

Wilwood Brakes AERO4 WCCB Carbon-Ceramic Big Brake Rear OE Parking Brake Kit 140-13161-CSIC

Wilwood Brakes AERO4 WCCB Carbon-Ceramic Big Brake Rear OE Parking Brake Kit 140-13161-CSIC
Wilwood Brakes AERO4 WCCB Carbon-Ceramic Big Brake Rear OE Parking Brake Kit 140-13161-CSICWilwood Brakes AERO4 WCCB Carbon-Ceramic Big Brake Rear OE Parking Brake Kit 140-13161-CSICWilwood Brakes AERO4 WCCB Carbon-Ceramic Big Brake Rear OE Parking Brake Kit 140-13161-CSICWilwood Brakes AERO4 WCCB Carbon-Ceramic Big Brake Rear OE Parking Brake Kit 140-13161-CSICWilwood Brakes AERO4 WCCB Carbon-Ceramic Big Brake Rear OE Parking Brake Kit 140-13161-CSICWilwood Brakes AERO4 WCCB Carbon-Ceramic Big Brake Rear OE Parking Brake Kit 140-13161-CSIC
$9,040.99 ea
NEWOut of stock with WILWOOD ENGINEERING as of 05/25/2024
Model: 3921605
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY

AERO4 WCCB Carbon-Ceramic Rotor Rear OE Parking Brake Kits offer an extreme performance upgrade featuring WCCB Carbon-Ceramic Dynamic Mount Rotors with Wilwood’s exclusive Bobbin Mounting System. AERO4 WCCB kits are engineered to maximize braking capacity inside custom wheels. Rear parking brake kits offer a simple bolt-on installation with OE original internal shoe parking brakes for outstanding holding power and are fully compatible with ABS and OE master cylinder output. AERO4 calipers are a competition proven and offer fully detail machined forged caliper body demonstrates superior strength and resistance to deflection and separation under high load. A high temperature, fluid resistant “Quick-Silver“ Nickel plate is the standard for performance, other colors (Black and Red powder coat) are available as options. 14.00” WCCB rotors are made from a proprietary blend ceramic matrix composite material commonly known as Carbon-Ceramic and dynamically using Wilwood’s proprietary integrated anti-rattle Bobbin Mounting System. WCCB rotors offer higher thermal conductivity and heat capacity in excess of conventional iron or titanium rotors of similar or even greater weight and have been developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking and wear.

Fitment Notes

1. 14" Rotor
2. Kit will require aftermarket wheel spacers of 1/8th" (not included in kit) for rear kit installation with OE wheels.

About Wilwood Engineering

Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.

With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.

Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.

Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.

Downloads:

Download Name File Size
ds990.pdf511.75KB

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Submodel Years Fitment Notes
Chevrolet Corvette 427 2013 KIT,REAR,C5 97-04/C6 05-13 VETTE,AERO4 14.00 C/SiC ROTOR; RTR:14.00-IN DIA, WCCD CARBON-CERAMIC, PLAIN FACE; CLPR:AERO4, 4-PISTON, BLACK POWDER COAT
14" Rotor
Kit will require aftermarket wheel spacers of 1/8th" (not included in kit) for rear kit installation with OE wheels.
Chevrolet Corvette Base 2009 - 2013 KIT,REAR,C5 97-04/C6 05-13 VETTE,AERO4 14.00 C/SiC ROTOR; RTR:14.00-IN DIA, WCCD CARBON-CERAMIC, PLAIN FACE; CLPR:AERO4, 4-PISTON, BLACK POWDER COAT
14" Rotor
Kit will require aftermarket wheel spacers of 1/8th" (not included in kit) for rear kit installation with OE wheels.
Chevrolet Corvette Base 2005 - 2008 KIT,REAR,C5 97-04/C6 05-13 VETTE,AERO4 14.00 C/SiC ROTOR; RTR:14.00-IN DIA, WCCD CARBON-CERAMIC, PLAIN FACE; CLPR:AERO4, 4-PISTON, BLACK POWDER COAT
14" Rotor
Kit will require aftermarket wheel spacers of 1/8th" (not included in kit) for rear kit installation with OE wheels.
C-6 - Base
Chevrolet Corvette Grand Sport 2010 - 2013 KIT,REAR,C5 97-04/C6 05-13 VETTE,AERO4 14.00 C/SiC ROTOR; RTR:14.00-IN DIA, WCCD CARBON-CERAMIC, PLAIN FACE; CLPR:AERO4, 4-PISTON, BLACK POWDER COAT
14" Rotor
Kit will require aftermarket wheel spacers of 1/8th" (not included in kit) for rear kit installation with OE wheels.
Chevrolet Corvette Z06 Carbon 2011 KIT,REAR,C5 97-04/C6 05-13 VETTE,AERO4 14.00 C/SiC ROTOR; RTR:14.00-IN DIA, WCCD CARBON-CERAMIC, PLAIN FACE; CLPR:AERO4, 4-PISTON, BLACK POWDER COAT
14" Rotor
Kit will require aftermarket wheel spacers of 1/8th" (not included in kit) for rear kit installation with OE wheels.
Chevrolet Corvette Z06 2009 - 2013 KIT,REAR,C5 97-04/C6 05-13 VETTE,AERO4 14.00 C/SiC ROTOR; RTR:14.00-IN DIA, WCCD CARBON-CERAMIC, PLAIN FACE; CLPR:AERO4, 4-PISTON, BLACK POWDER COAT
14" Rotor
Kit will require aftermarket wheel spacers of 1/8th" (not included in kit) for rear kit installation with OE wheels.
Chevrolet Corvette Z06 2006 - 2008 KIT,REAR,C5 97-04/C6 05-13 VETTE,AERO4 14.00 C/SiC ROTOR; RTR:14.00-IN DIA, WCCD CARBON-CERAMIC, PLAIN FACE; CLPR:AERO4, 4-PISTON, BLACK POWDER COAT
14" Rotor
Kit will require aftermarket wheel spacers of 1/8th" (not included in kit) for rear kit installation with OE wheels.
C-6-Z06 Models
Chevrolet Corvette ZR1 2009 - 2013 KIT,REAR,C5 97-04/C6 05-13 VETTE,AERO4 14.00 C/SiC ROTOR; RTR:14.00-IN DIA, WCCD CARBON-CERAMIC, PLAIN FACE; CLPR:AERO4, 4-PISTON, BLACK POWDER COAT
14" Rotor
Kit will require aftermarket wheel spacers of 1/8th" (not included in kit) for rear kit installation with OE wheels.
Chevrolet Corvette 1997 - 2004 KIT,REAR,C5 97-04/C6 05-13 VETTE,AERO4 14.00 C/SiC ROTOR; RTR:14.00-IN DIA, WCCD CARBON-CERAMIC, PLAIN FACE; CLPR:AERO4, 4-PISTON, BLACK POWDER COAT
14" Rotor
Kit will require aftermarket wheel spacers of 1/8th" (not included in kit) for rear kit installation with OE wheels.
C-5 & Z06 Models

Specifications:

Details
Part Type Disc Brake Caliper / Rotor / Pad Kit
Kit Summary
Axle Offset 0.00
Caliper Type 4 - Black Powder Coat
Min Wheel Diameter Req'd* 18
Mount Type Radial
Rear End Axle OEM
Rotor Diameter 14.00

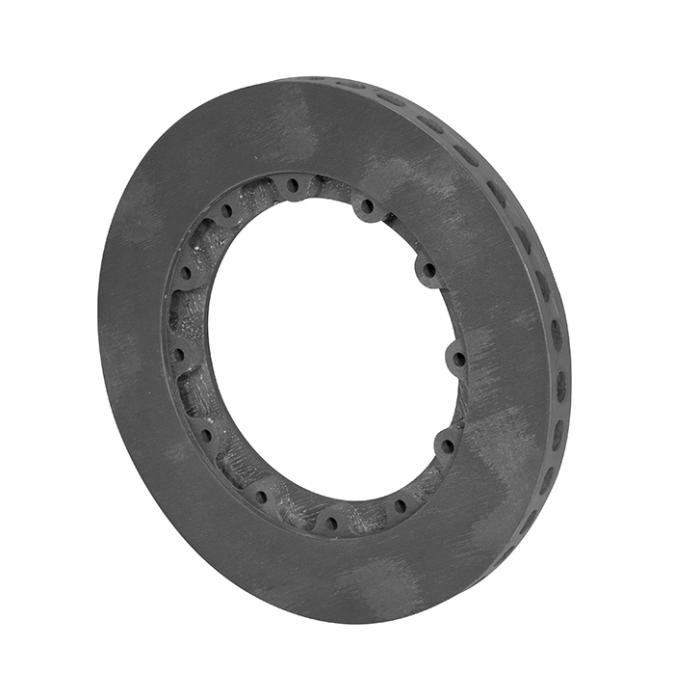

Kit Components & Specs / Rotors
Bedded No
Design Type C/SiC
Dynamically Balanced No
Left Hand - Part No 160-12441
Material C/SiC
Outside Diameter (in) 14.00
Right Hand - Part No 160-12441
Style Plain Face
Surface Finish Plain
Type WCCD Carbon-Ceramic
Vane Count 24 V
Width (in) 1.10
Parts & Accessories / Caliper Parts
Bleed Screw Kit 220-0627
O-ring Kit 130-2579
Replacement Piston 1 200-7513
Replacement Piston 2 200-7513
Wear Plate - Left Hand 300-5876
Wear Plate - Right Hand 300-5876

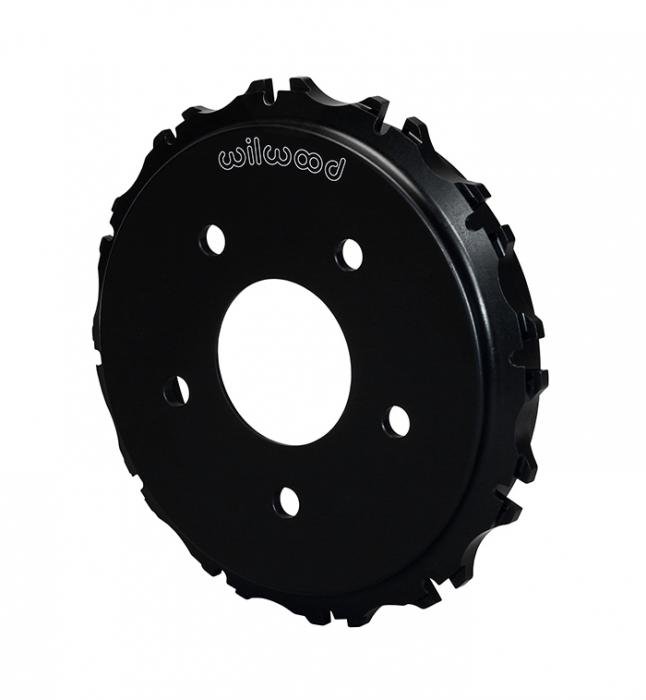

Kit Components & Specs / Rotor Hats
Bolt Circle 1 5 x 4.75
Finish Color Type III Anodize
Hat - Part No 170-13160
Hat Offset Dimension (in) 0.660
Material Aluminum
Stud Diameter - BC 1 0.520
Stud Diameter - BC 2 0.000
Stud Diameter - BC 3 0.000
Type Parking Brake Hat - Dynamic Bobbin Mount
Parts & Accessories / Hat
Bolt Kit Call
Kit Components & Specs / Calipers
Brake Pad Area (In²) 11.1
Brake Pad Plate 6617
Brake Pad Volume (In³) 5.2
Finish Color Black Powder Coat
Left Hand - Part No 120-13338-BK
Mount Type Radial
Pad Compound PCM
Piston 1 Bore (in) 1.12
Piston 2 Bore (in) 1.12
Piston Area (In²) 1.98
Piston Count 4
Piston Type Stainless
Right Hand - Part No 120-13338-BK
Type AERO4
Parts & Accessories / Brake Lines
Front Line Kit 220-8177, 220-9101
